Gigabyte B550M B550 AORUS ELITE AX V2 DDR4 rev. 1.0 AM4

Name: Gigabyte B550M B550 AORUS ELITE AX V2 DDR4 rev. 1.0 AM4 - Clix Gamers
SKU: B550-AORUS-ELITE-AX-V2
Price: 819 ILS
Availability: OutOfStock

מק"ט B550-AORUS-ELITE-AX-V2 Category لوحات الام - AMD Tags 4-Slots, AM4, B550, DDR4, GIGABYTE, Micro ATX

Product Details

₪819

أضف الى السلة

תיאור מוצר

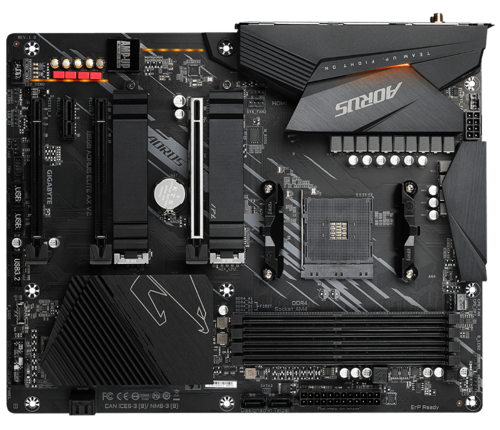

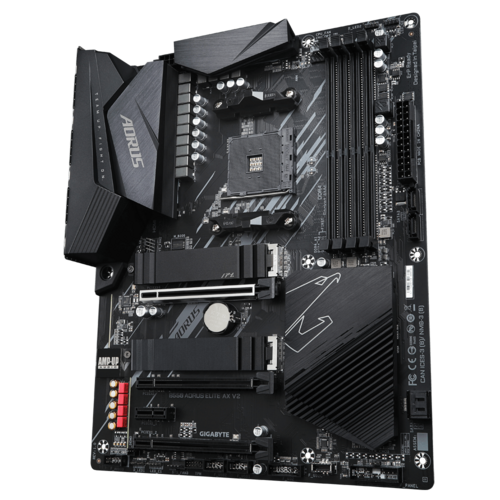

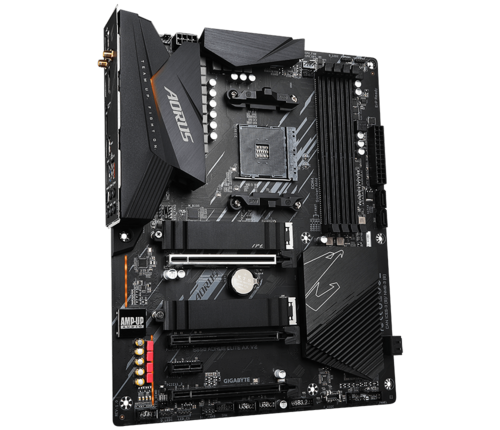

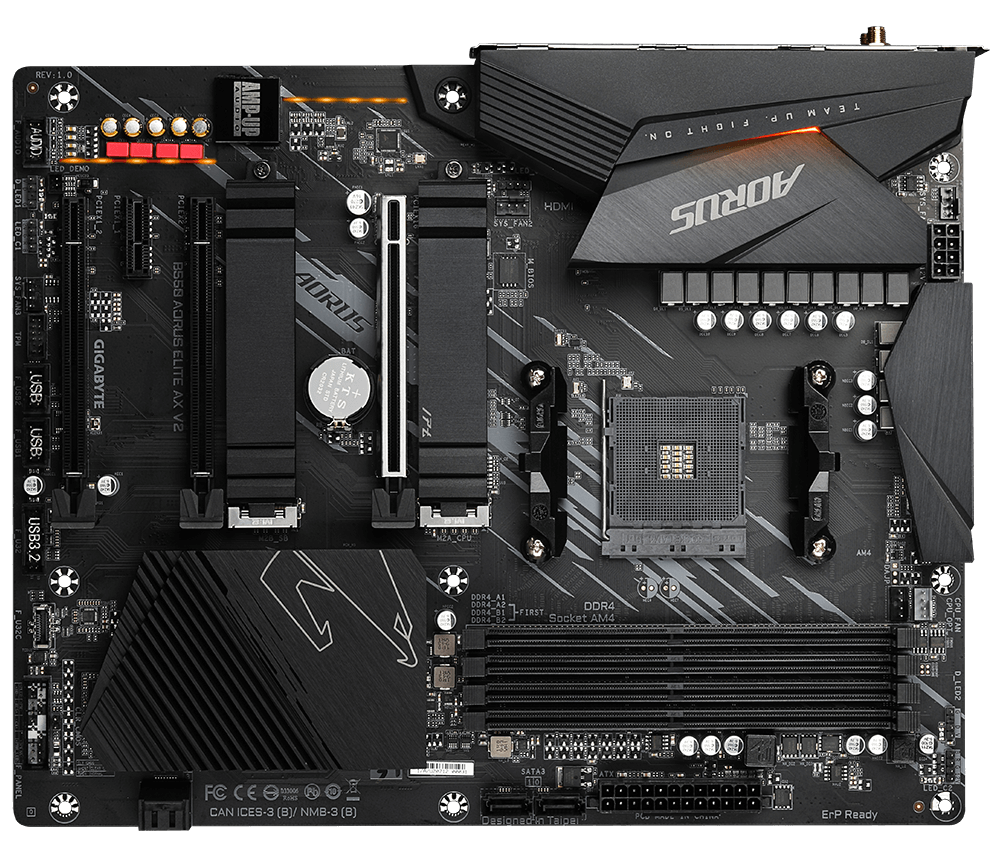

B550 AORUS ELITE AX V2 (rev. 1.0)

AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel^® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital Twin Power Design with 50A DrMOS
Advanced Thermal Design with Enlarged Surface Heatsinks
Ultra Durable™ PCIe 4.0 x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
Onboard Intel^® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
AMP-UP Audio with ALC1200 and WIMA Capacitors
Blazing Fast 2.5GbE LAN with Bandwidth Management
Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Pre-installed IO Shield for Easy and Quick Installation

ULTIMATE POWER DESIGN

UNPARALLELED PERFORMANCE

ADVANCED THERMAL SOLUTION

NEXT GENERATION CONNECTIVITY

HI-FI AUDIO SYSTEM

DEFINITIVE AESTHETICS

ULTRA DURABLE

GIGABYTE BIOS & APP CENTER

DESIGN CONCEPT

DOMINANT IN DARKNESS

In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.

Intel^® WiFi 6 802.11ax & BT5

DisplayPort

HDMI

Q-Flash Plus Button

2.5 GbE LAN

Advanced Thermal Design

Enlarged Surface Heatsinks
5 W/mK Thermal Conductivity Pad
Pre-installed I/O Shield

Audio Solutions

ALC1200 Audio
Nichicon Fine Gold Audio Capacitors
Audiophile Grade WIMA Capacitors

RGB FUSION 2.0

Addressable LED Header*2
RGB LED Header*3

12+2 Phases Digital Twin Power Design with DrMOS

50A DrMOS
Premium Choke and Capacitor
2X Copper PCB

Dual Channel DDR4, 4 DIMMs

Supports 3rd Gen AMD Ryzen™ Processors

Solid Pin Power Connectors

24 Pin ATX Power Connector
8 Pin CPU Power Connector

Dual M.2 Connectors

1- 22110 M.2 with Thermal Guard

PCIe 4.0 M.2 Connector
NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)

2- 22110 M.2 with Thermal Guard

NVMe PCIe 3.0 x4 and SATA Mode (from Chipset)

Ultra Durable PCIe Armor

PCIe 4.0 Slot
Running 1 x16

Front USB 3.2 Gen1 Type-C™

Smart Fan 5 + FAN STOP

5* Fan / Water Pump Connectors
6* Temperature Sensors

AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi

Digital PWM

Driver MOSFET

All-Solid Capacitor

CPU Power Connector

12*+2 Phases Digital Twin Power Design

Digital PWM Controller delivers appropriate voltage to the CPU
With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total
All-solid capacitors to improve Transient response and minimize oscillation
24pin+8pin Solid Pin CPU Power Connectors

B550 AORUS ELITE AX V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

*6+6 Phases parallel power design

Enlarged Surface Heatsinks

5 W/mK Thermal Conductivity Pad

M.2 Thermal Guard

2.5GbE LAN Onboard

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds as compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig (10/100/1000/2500Mbps)of RJ-45 ethernet.

High-End WIMA & Audio Capacitors

The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

Ultra Durable™ PCIe Armor

Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

BIOS

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

* Free 14 days XSplit Gamecaster + Broadcaster Premium License.
