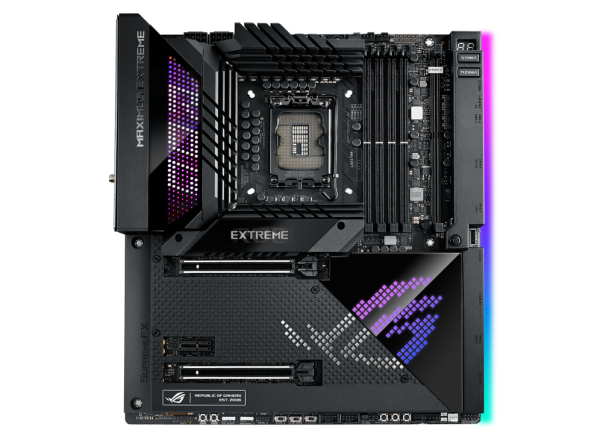

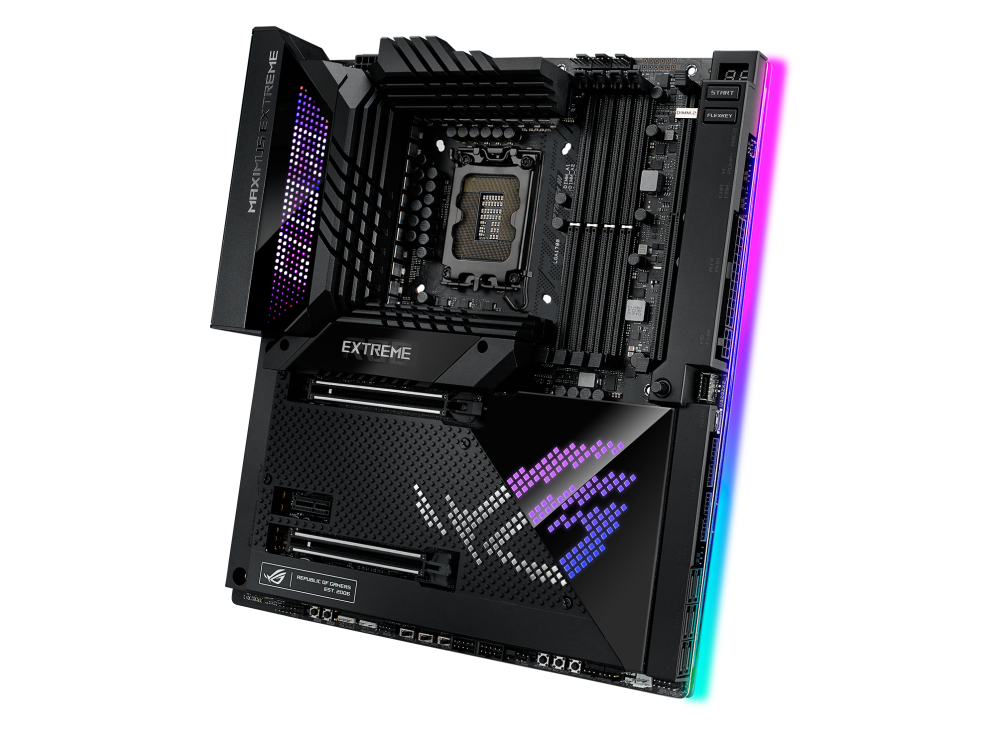

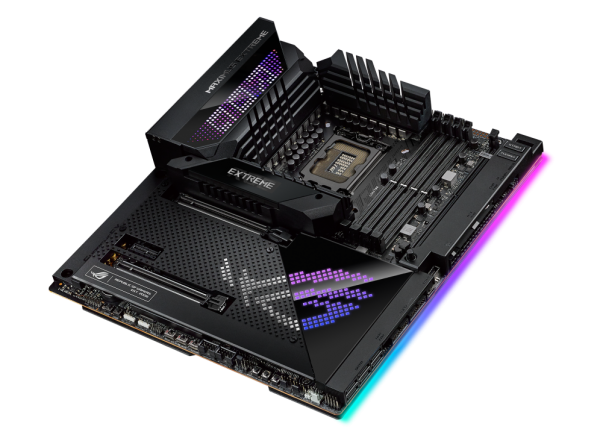

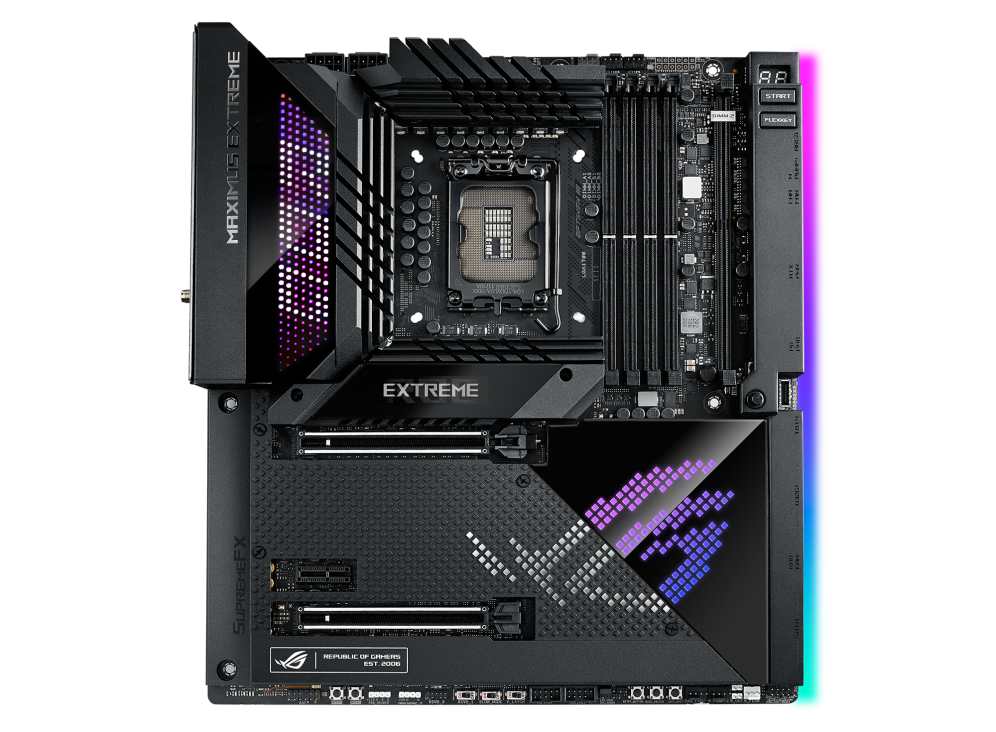

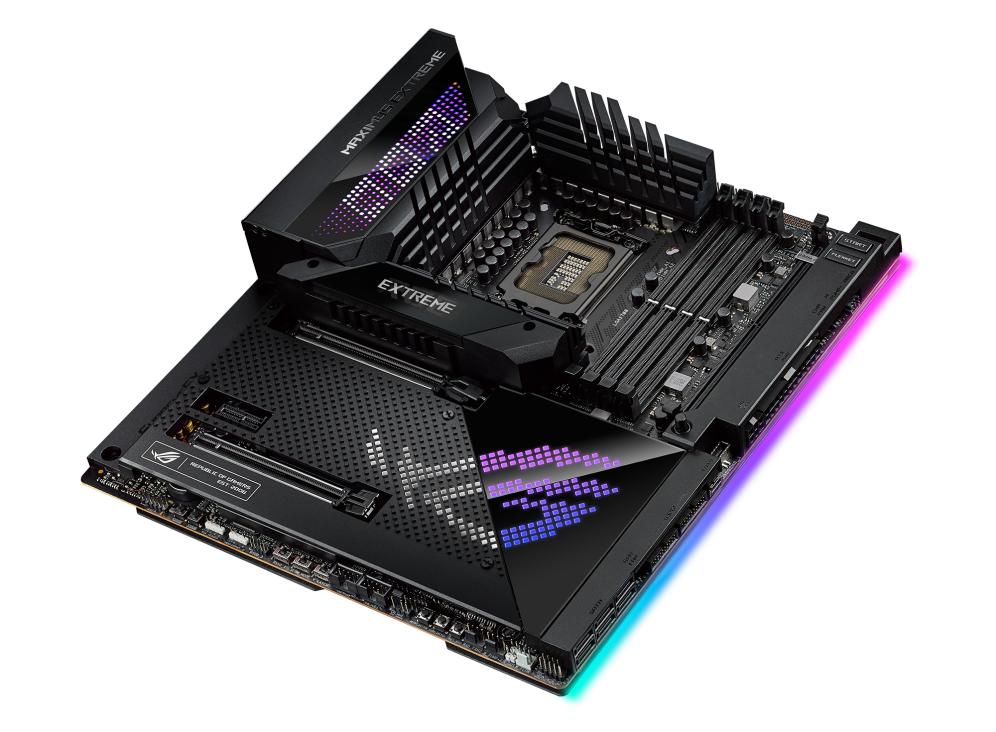

Representing the pinnacle of design and performance, the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0) has been uniquely engineered for the enthusiast seeking the best possible motherboard solution, capable of excelling at cooling your 12th Generation Intel Core processors with either an air or liquid thermal system, so you can truly craft a high-end battlestation setup on your terms. Armed to the teeth with cutting-edge features and functionality, unmatched by its competitors, the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0) grants users’ access to heavy-duty 24+1 power stages, ASUS Enhanced Memory Profiles for truly impressive DDR5 memory speeds, multiple PCIe 5.0 slots and the proprietary AniMe Matrix LED display, this performance-oriented motherboard seeks to supply the casual and competitive gamer with all the tools they need to comfortably make that top spot of the leaderboard their home.
With the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0)’s intelligent AI overclocking practicality tuning is faster and smarter than ever. ASUS AI Overclocking profile the CPU and cooling systems to predict the ideal configuration for your rig to operate in, allowing each of your components to truly be pushed to the limits.
Balance the thermal and acoustics of your build with a single click, courtesy of the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0)’s AI Cooling function. Strike that perfect balance between effective heat dissipation and laser-focused gameplay, as the exclusive algorithm limits unnecessary noise emissions by monitoring your system.
GamerFirst VI optimises networking performance by allocating bandwidth in real time, in response to your systems application usage scenarios and corresponding learning algorithms. This helps competitive gamers, movie moguls and other online enthusiasts to enjoy ultra-stable, highly responsive networking performances for uninterrupted entertainment.
The ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0) is truly unparalleled in its flexibility, offering both air and liquid cooling opportunities, so users can device for themselves how they choose to approach thermal operations for their rigs. The diverse array of heavyweight heat dissipation options means the power delivery systems, M.2 drives and onboard hardware all benefit from effective cooling under heavy loads, regardless of the available airflow. Featuring numerous thermal options, the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0) takes the hassle out of combatting heat buildups by giving users multiple avenues for comprehensive cooling. Multiple temperature sources can be configured to establish workload-based cooling, where cooling will either be amplified or reduced depending on which areas of the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0) require the most attention, allowing you and your system to benefit from a more intelligent, longer-lasting thermal solution. For additional cooling optimisation, the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0) offers an additional six headers to be used and managed via FanXpert 4 technology. Dual temperature sensor headers, alongside two thermistors can be attached to various components, resulting in a highly customisable, highly powerful thermal system your entire rig will benefit from.
Get maximum performance out of your battlestation or workstation setups, with the aid of the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0)’s comprehensive range of multi-purpose I/O ports. Utilise cutting-edge connectivity technology, in the form of Wi-Fi 6E, PCIe 5 and dual Thunderbolt 4 USB-C ports, the ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0) enables supersmooth networking and blisteringly fast data transfer speeds to make long-winded load times a concern of the past. Competitive gamers looking to experience new and exciting immersive adventures into their gaming environments and online arenas, will be treated to the high-fidelity SupremeFX ALC4082 codec. Capable of transforming traditional gaming experiences into immersive adventures, you are free to experience new layers of detail and atmosphere unlike anything else prior. The ASUS ROG Maximus Z690 Extreme Motherboard (90MB18H0-M0EAY0) supplies the user with exceptional depth in both wired and wireless connection opportunities, in the form of Wi-Fi 6E (Gig+) and Intel 2.5GB Ethernet, as well as USB-C 3.2 Gen 2 and Thunderbolt technology, to ensure every aspect of your planned expansion is catered for.
| Socket | Intel Socket LGA 1700 |
| Chipset | Intel Z690 |
| Memory slots | 4x DDR5 |
| Memory Slot Support | Up To 128GB Memory Support |
| SATA Ports | 6x SATA 6Gb/s |
| M.2 Slot | 5x M.2 |
| DisplayPort Connector | N/A |
| HDMI Connector | 1 x HDMI Port |
| Thunderbolt Ports | 2 x Thunderbolt |
| Form Factor | E-ATX |
| Alternative Part Number | ROG MAXIMUS Z690 EXTREME |
| STORAGE | |
| Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110*** – Intel® 12th Gen processors support PCIe 5.0 x4 mode. M.2_2 slot (Key M), type 2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports**** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. ***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. ****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. |
| MEMORY | |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 MT/s Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III *Actual memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| EXPANSION SLOTS | |
| Expansion Slots | Intel® 12th Gen Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** Intel® Z690 Chipset*** 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. *** Support Intel® Optane Memory H Series on PCH-attached PCIe slot. |
| AUDIO | |
| Audio | "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback" Audio Features – SupremeFX Shielding Technology – ESS® SABRE9018Q2C DAC/AMP – LED-illuminated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
| GRAPHICS | |
| Graphics | 1 x HDMI® port** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ***Support 4K@60Hz as specified in HDMI® 2.1. |
| BACK PANEL PORTS | |

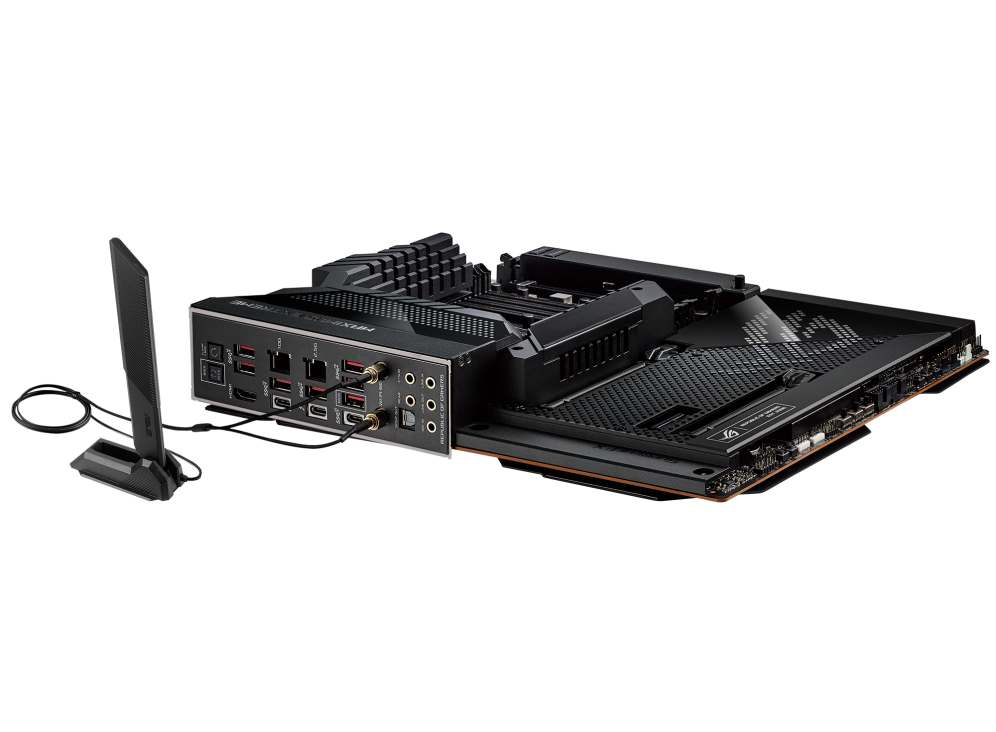

| Ports | 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x HDMI® port 1 x ASUS Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| INTERNAL I/O PORTS | |
| Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1 x Addressable Gen 2 header 1 x AURA RGB header 1 x BIOS Switch button 2 x BCLK button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x V_Latch switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| CPU | |
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| USB | |
| USB | Rear USB (Total 10 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) Front USB (Total 10 ports) 1 x Thunderbolt™ 4 connector (1 x USB Type-C®) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| SPECIAL FEATURES | |
| Special Features | Extreme OC Kit – FlexKey button – LN2 Mode – Probelt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – Steel backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – ROG AURA sync backplate – AURA RGB header(s) – Addressable Gen 2 header(s) Dual BIOS OLED 2" Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support – Support: up to 60W charging* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE – 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) * Visit ASUS Website for the latest compatibility list. |
| SOFTWARE FEATURES | |
| Software Features | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – ROG True Voltician – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation – OLED Display – AniMeTM Matrix LED Display AI Suite 3 – 5-Way Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode MemTest86 |
| FORM FACTOR | |
| Form Factor | EATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ) |
| ETHERNET | |
| Connectivity | 1 x Intel® 2.5Gb Ethernet 1 x Marvell® AQtion 10Gb Ethernet ASUS LANGuard |
| WIRELESS | |
| Connectivity | "Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. " |
| ACCESSORIES | |

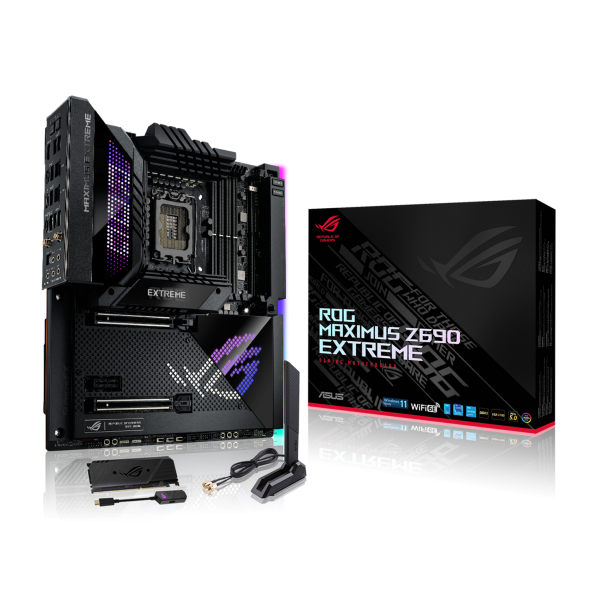

| Accessories | Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cables 1 x RGB extension cable 3 x ROG weave SATA 6G cables 4 x SATA 6Gb/s cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 ROG True Voltician 1 x ROG True Voltician 4 x cables for ROG True Voltician Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 SSD screw package 1 x Q-connector 1 x ROG CLAVIS DAC 1 x ROG graphics card holder 1 x ROG key chain 1 x ROG logo plate stickers 1 x ROG screwdriver 1 x ROG stickers 1 x ROG thank you card 1 x Thermal pad package for M.2 heatsink Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide |
