13th Gen Intel® Core™ processors – It divides so you can conquer.

Get the performance you need, right when and where you need it most.

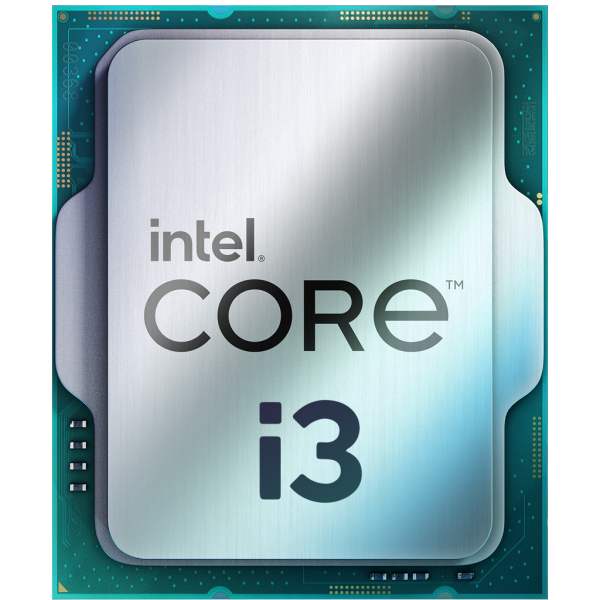

Intel® Core™ i3-13100 Processor

12M Cache, up to 4.50 GHz

• UPE | Compare Intel® Products
  03/07/2023 12:14
  	Intel® Core™ i3-13100 Processor (12M Cache- up to 4.50 GHz)
  Essentials
  Product Collection	13th Generation Intel® Core™ i3 Processors
  Code Name	Products formerly Raptor Lake
  Vertical Segment	Desktop
  Processor Number	i3-13100
  Lithography	Intel 7
  Recommended Customer Price	$134.00 – $144.00
  Use Conditions	PC/Client/Tablet
  CPU Specifications
  Total Cores	4
  # of Performance-cores	4
  # of Efficient-cores	0
  Total Threads	8
  Max Turbo Frequency	4.50 GHz
  Performance-core Max Turbo Frequency	4.50 GHz
  Performance-core Base Frequency	3.40 GHz
  Cache	12 MB Intel® Smart Cache
  Total L2 Cache	5 MB
  Processor Base Power	60 W
  Maximum Turbo Power	89 W
  Supplemental Information
  Marketing Status	Launched
  Launch Date	Q1'23
  Embedded Options Available	Yes
  Memory Specifications
  Max Memory Size (dependent on memory type)	128 GB
  Memory Types	Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
  Max # of Memory Channels	2
  Max Memory Bandwidth	76.8 GB/s
  Processor Graphics
  Processor Graphics ‡	Intel® UHD Graphics 730
  Graphics Base Frequency	300 MHz
  Graphics Max Dynamic Frequency	1.50 GHz
  Graphics Output	eDP 1.4b |  DP 1.4a |  HDMI 2.1
  Execution Units	24
  Max Resolution (HDMI)‡	4096 x 2160 @ 60Hz
  Max Resolution (DP)‡	7680 x 4320 @ 60Hz
  Max Resolution (eDP – Integrated Flat Panel)‡	5120 x 3200 @ 120Hz
  DirectX* Support	12
  OpenGL* Support	4.5
  OpenCL* Support	3
  Multi-Format Codec Engines	1
  Intel® Quick Sync Video	Yes
  Intel® Clear Video HD Technology	Yes
  # of Displays Supported ‡	4
  Device ID	0x4692
  Expansion Options
  Direct Media Interface (DMI) Revision	4
  Max # of DMI Lanes	8
  Scalability	1S Only
  PCI Express Revision	5.0 and 4.0
  PCI Express Configurations ‡	Up to 1×16+4 |  2×8+4
  Max # of PCI Express Lanes	20
  Package Specifications
  Sockets Supported	FCLGA1700
  Max CPU Configuration	1
  Thermal Solution Specification	PCG 2020C
  TJUNCTION	100°C
  Package Size	45.0 mm x 37.5 mm
  Advanced Technologies
  Intel® Gaussian & Neural Accelerator	3
  Intel® Thread Director	No
  Intel® Deep Learning Boost (Intel® DL Boost)	Yes
  Intel® Speed Shift Technology	Yes
  Intel® Turbo Boost Max Technology 3.0 ‡	No
  Intel® Turbo Boost Technology ‡	2
  Intel® Hyper-Threading Technology ‡	Yes
  Intel® 64 ‡	Yes
  Instruction Set	64-bit
  Instruction Set Extensions	Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
  Idle States	Yes
  Enhanced Intel SpeedStep® Technology	Yes
  Thermal Monitoring Technologies	Yes
  Intel® Volume Management Device (VMD)	Yes
  Security & Reliability
  Intel® Threat Detection Technology (TDT)	Yes
  Intel® Standard Manageability (ISM) ‡	Yes
  Intel® Control-Flow Enforcement Technology	Yes
  Intel® AES New Instructions	Yes
  Secure Key	Yes
  Intel® OS Guard	Yes
  Execute Disable Bit ‡	Yes
  Intel® Boot Guard	Yes
  Mode-based Execute Control (MBEC)	Yes
  Intel® Virtualization Technology (VT-x) ‡	Yes
  Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
  Intel® VT-x with Extended Page Tables (EPT) ‡	Yes
