Model Name |
PANZER EVO RGB |
Case Form Factor |
Full-Tower |
Motherboard Type |
Mini ITX / Micro ATX / ATX / CEB /
E-ATX ( E-ATX up to 12″x11″ ) |
Dimension (WxHxD) |
266 x 612 x 556 (mm)
10.47 x 24.09 x 21.88 (in) |
3.5″ Drive Bay |
2 |
2.5″ Drive Bay |
4+2 (converted from 3.5″ drive bays) |
Expansion Slots |
8 |
Cooling System |
Front |
120mm x 3 / 140mm x 3
120mm x 3 (COUGAR Vortex ARGB fan pre-installed) |
Top |
120mm x 3 / 140mm x 2 |

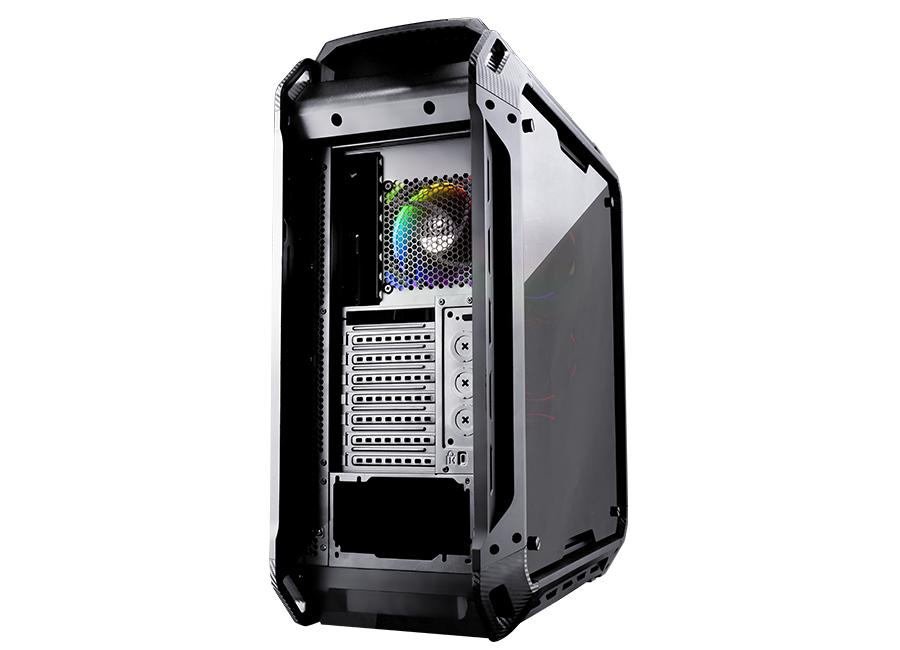

Rear |
120mm x 1 (COUGAR Vortex ARGB fan pre-installed) |
Bottom |
120mm x1 / 140mm x 1 |

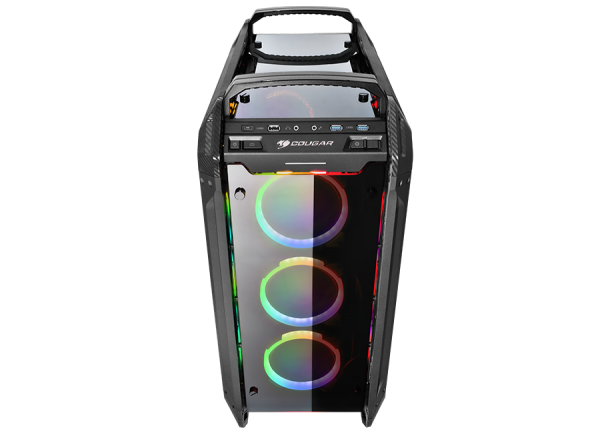

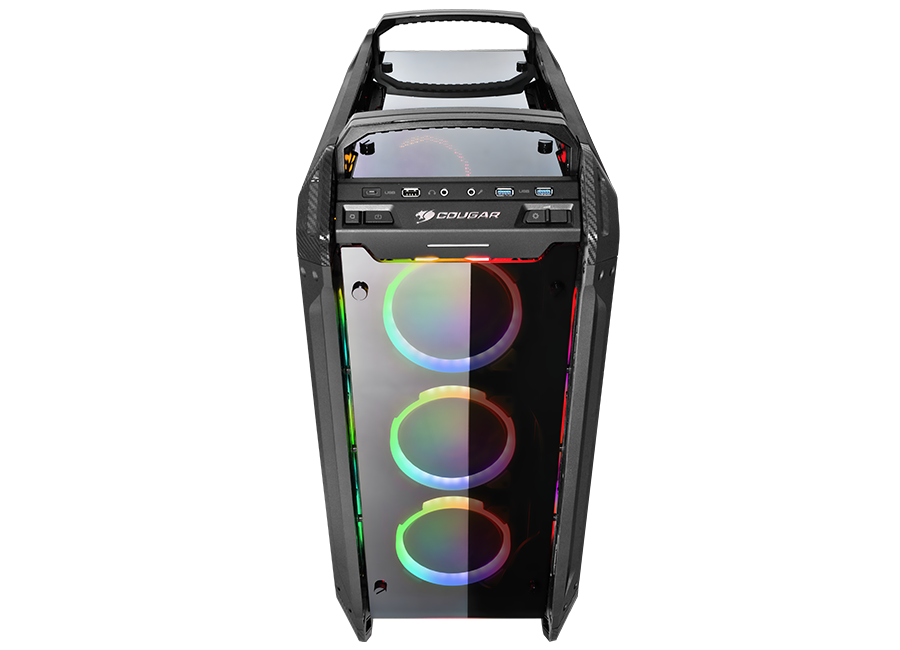

I/O Panel |
USB 3.1 Gen2 Type-C
USB3.0 x 2 / USB2.0 x 1
Mic x 1/Audio x 1
Fan Controller |
Water Cooling Support |
Front |
360mm / 280mm / 240mm / 140mm / 120mm |
Top |
360mm / 280mm / 240mm / 140mm / 120mm |
Rear |
120mm |
Bottom |
140mm / 120mm |
Max. Graphics Card Length |
390 (mm) / 15.35 (in)
(Horizontal graphics card slots are compatible with RTX 3090/3080/3070.) |
Max. CPU Cooler Height |
170 (mm) / 6.69 (in) |
PSU |
Standard ATX PS2 |
Max. PSU Length |
220 (mm) / 8.7 (in) |
Cable Management |
Yes |
Maximum Number of Fans |
8 Max. |
