₪9,249
| SPECIFICATIONS | |
| Brand | Asus |
| Series | ROG Z690 |
| Model | ASUS ROG MAXIMUS Z690 EXTREME GLACIAL |
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors* |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem III | |
| *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x HDMI port** |
| 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ***Support 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | Intel 12th Gen Processors* |
| 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)** | |
| Intel Z690 Chipset*** | |
| 1 x PCIe 3.0 x1 slot | |
| * Please check PCIe bifurcation table in support site. | |
| ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. | |
| *** Support Intel Optane Memory H Series on PCH-attached PCIe slot. | |
| Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* |
| Intel 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110*** | |
| – Intel 12th Gen processors support PCIe 5.0 x4 mode. | |
| M.2_2 slot (Key M), type 2280 | |
| – Intel 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel Z690 Chipset** | |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) | |
| DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 6 x SATA 6Gb/s ports**** | |
| * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. | |
| ***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. | |
| ****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| 1 x Marvell AQtion 10Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 (802.11 a/b/g/n/ac/ax) and Bluetooth v5.2 |
| USB | Rear USB (Total 10 ports) |
| 1 x Thunderbolt 4 port (1 x USB Type-C) | |
| 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) | |
| 8 x USB 3.2 Gen 2 ports (7 x Type-A 1 x USB Type-C) | |
| Front USB (Total 10 ports) | |
| 1 x Thunderbolt 4 connector (1 x USB Type-C) | |
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) | |
| 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Audio Features | |
| – SupremeFX Shielding Technology | |
| – ESS SABRE9018Q2C DAC/AMP | |
| – LED-illuminated audio jacks | |
| – Rear optical S/PDIF out port | |
| – Premium audio capacitors | |
| – Audio cover | |

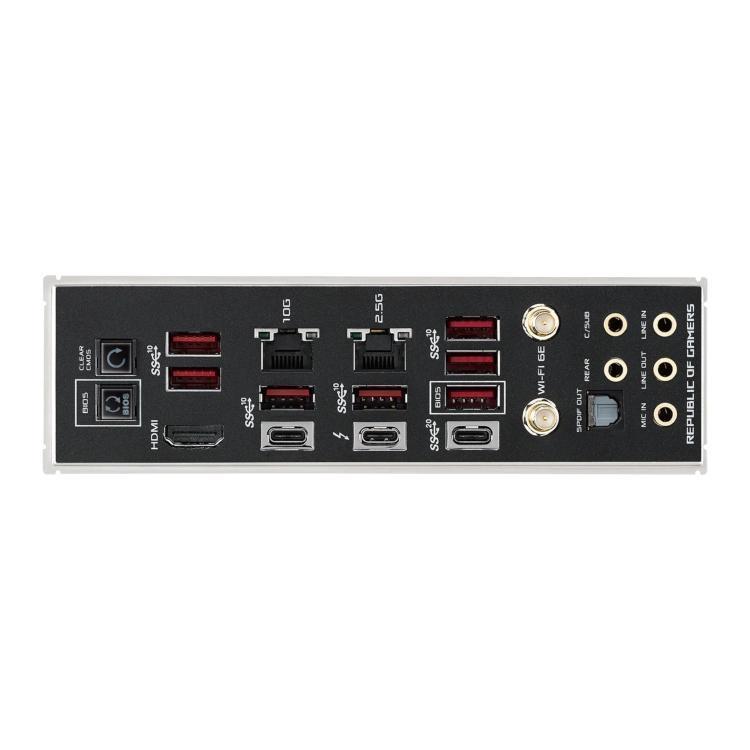

| Back Panel I/O Ports | 1 x Thunderbolt 4 USB Type-C port |
| 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) | |
| 8 x USB 3.2 Gen 2 ports (7 x Type-A 1 x USB Type-C) | |
| 1 x HDMI port | |
| 1 x ASUS Wi-Fi Module | |
| 1 x Intel 2.5Gb Ethernet port | |
| 1 x Marvell AQtion 10Gb Ethernet port | |
| 5 x LED-illuminated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling related |
| 2 x 4-pin Chassis Fan headers | |
| 2 x 4-pin Radiator Fan headers | |
| 2 x W_PUMP headers | |
| 1 x WB_SENSOR header | |
| 1 x 2-pin Water In header | |
| 1 x 2-pin Water Out header | |
| 1 x 3-pin Water Flow header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin 12V Power connector | |
| 1 x 6-pin PCIe Graphics Card connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x Intel Thunderbolt 4 port (USB Type-C) | |
| 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) | |
| 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers | |
| 1 x Addressable Gen 2 header | |
| 1 x AURA RGB header | |
| 1 x WB_ADD header | |
| 1 x BIOS Switch button | |
| 2 x BCLK button | |
| 1 x FlexKey button | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x LN2 Mode jumper | |
| 1 x Osc sence header | |
| 12 x ProbeIt Measurement Points | |
| 1 x ReTry button | |
| 1 x RSVD switch | |
| 1 x RSVD header | |
| 1 x Safe Boot button | |
| 1 x Slow Mode switch | |
| 1 x Start button | |
| 1 x V_Latch switch | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | Extreme OC Kit |
| – FlexKey button | |
| – LN2 Mode | |
| – Probelt | |
| – ReTry button | |
| – Safe boot button | |
| – Start button | |
| – Slow Mode | |
| Extreme Engine Digi | |
| – 10K Black Metallic Capacitors | |
| – MicroFine Alloy Choke | |
| ASUS Q-Design | |
| – M.2 Q-Latch | |
| – Q-Code | |
| – Q-Connector | |
| – Q-DIMM | |
| – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink backplate | |
| – M.2 heatsink | |
| – Steel backplate | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – BIOS FlashBack button | |
| – Clear CMOS button | |
| – ProCool II | |
| – Pre-mounted I/O shield | |
| – SafeSlot | |
| – SafeDIMM | |
| AURA Sync | |
| – ROG AURA sync backplate | |
| – AURA RGB header(s) | |
| – Addressable Gen 2 header(s) | |
| Dual BIOS | |
| OLED 2″ | |
| Front Panel USB 3.2 Gen 2×2 with Quick Charge 4 Support | |
| – Support: up to 60W charging* | |
| – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS | |
| * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W | |
| ASUS HYDRANODE | |
| – 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) | |
| * Visit ASUS Website for the latest compatibility list. | |
| Software Features | ROG Exclusive Software |
| – GameFirst VI | |
| – ROG CPU-Z | |
| – Sonic Studio III Sonic Studio Virtual Mixer Sonic Suite Companion | |
| – Sonic Radar III | |
| – DTS Sound Unbound | |
| – BullGuard Internet Security (1-year full version) | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| – AIDA64 Extreme (1 year full version) | |
| – AURA Creator | |
| – AURA Sync | |
| – Fan Xpert 4 | |
| – Two-Way AI Noise Cancelation | |
| – OLED Display | |
| – AniMeTM Matrix LED Display | |
| AI Suite 3 | |
| – Easy Optimization with AI Overclocking | |
| TPU | |
| EPU | |
| DIGI Power Control | |
| Turbo app | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
| MemTest86 | |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 1 x 1-to-3 ARGB splitter cable | |
| 1 x 1-to-2 ARGB splitter cable | |
| 2 x 1-to-4 fan splitter cables | |
| 1 x RGB extension cable | |
| 3 x ROG weave SATA 6G cables | |
| 1 x 3-in-1 Thermistor cables pack | |
| ROG Fan Controller | |
| 1 x ROG Fan Controller | |
| 1 x Fan EXT PWR cable | |
| 1 x ARGB input cable | |
| 1 x USB input cable | |
| 1 x ROG Fan Controller 3M Mounting tape | |
| 1 x Fan Controller manual | |
| ROG DIMM.2 with Heatsink | |
| 1 x ROG DIMM.2 with heatsink | |
| 1 x M.2 pad for ROG DIMM.2 | |
| 2 x M.2 screw package for ROG DIMM.2 | |
| Additional Cooling Kit | |
| 1 x Monoblock | |
| 3 x Screw package for monoblock | |
| 1 x Thermal pad for monoblock | |
| 1 x Fittings for monoblock | |
| 1 x M.2 heatsink | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x M.2 SSD screw package | |
| 1 x Q-connector | |
| 1 x ROG CLAVIS DAC | |
| 1 x ROG graphics card holder | |
| 1 x ROG key chain | |
| 1 x ROG logo plate stickers | |
| 1 x ROG screwdriver | |
| 1 x ROG stickers | |
| 1 x ROG thank you card | |
| Installation Media | |
| 1 x USB drive with utilities and drivers | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | EATX Form Factor |
| 30.5 cm x 27.7 cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
