Main characteristics |
Manufacturer |
ASUS |
Series |
Strix |
Model |

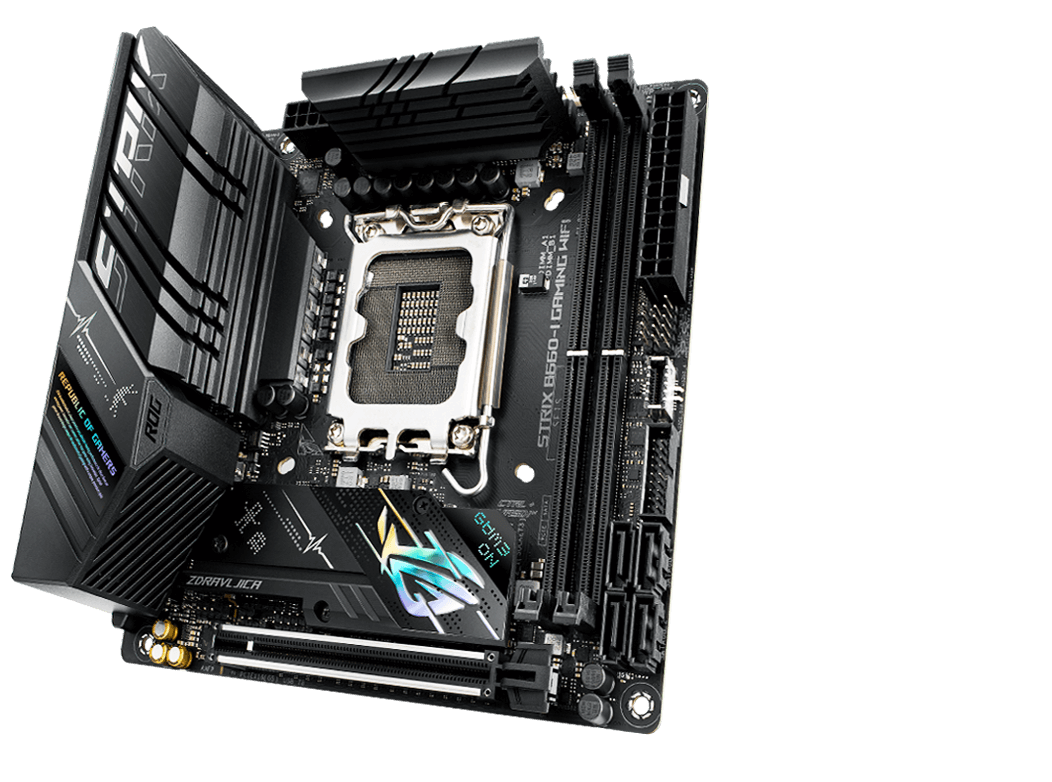

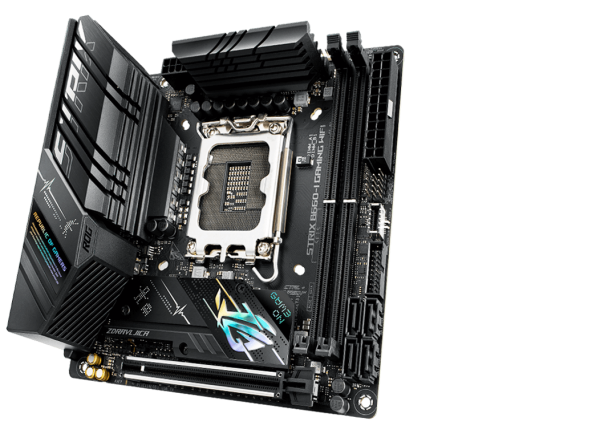

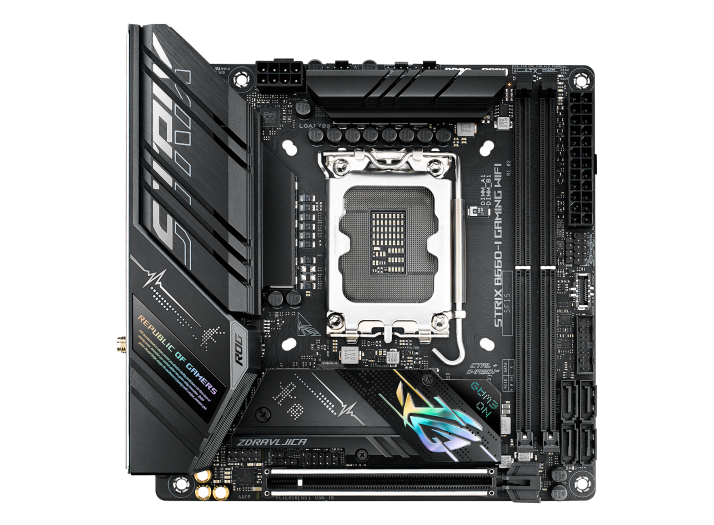

ROG STRIX B660-I GAMING WIFI |
Type of equipment |
Motherboard |
Purpose |
Desktop PC |
Chipset mat. Boards |
Intel B660 |
Processor socket |
Socket LGA1700 |
Board Format |
Mini-ITX (170 x 170mm) |
Processor support |
Max. number of processors on the motherboard |
one |
Memory support |
Number of memory slots |
2 |
Maximum RAM |
64 GB |
Disk system |
Number of M.2 connectors ( NGFF ) |
2 M Key PCI-E slots supporting Type 2280 cardsm.2 SSD |
SATA 6Gb/s |
4 channels |
Communications |
Net |
2.5 Gbps |
Slots for installing expansion cards |
Number of PCI Express 16x slots |
1 x 16x PCI-E 5.0 slot |
Built-in sound card |
Sound |
Realtek ALC S1220A 8-channel codec |
Nutrition |
Power Supply Requirements |
Only 24+8 pin power supplies are supported |
Other characteristics |
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
External sources of information |
Connectors on the rear panel: Network: Maximum transfer rate, MB |
2500 |
Package weight (unit) |
1.28 kg |
Motherboards: Additional Information: Gaming |
Yes |
Motherboards:Processor & Chipset:Number of sockets |
one |
PartNumber/Article of the Manufacturer |
ROG STRIX B660-I GAMING WIFI |
RAM: Maximum memory frequency OC (overclocked), |
6200 |
PCI-E 5.0 x16 slots |
one |
Supported memory modules |
check compatibility on the manufacturer’s website |
Motherboards:Additional information:Availability of interfaces |

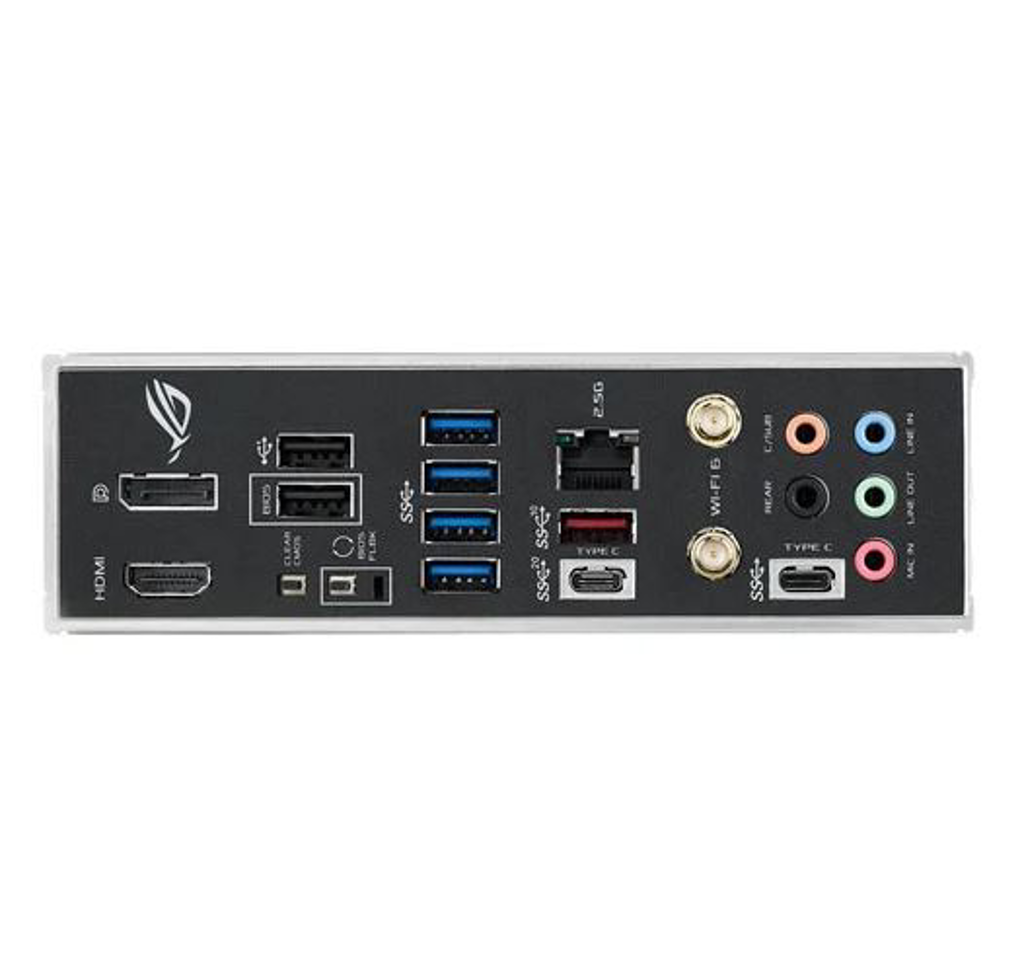

USB 3.2 Gen 2×2 Type-C, 3xUSB 3.2 Gen 1, USB 3.2 Gen 1 Type-C, 3xUSB 2.0, HDMI, DisplayPort, Ethernet, 5xAudio jacks |
Base Features:Maximum CPU TDP, |
125 |
ProductNameImported |
Motherboard ASUS ROG STRIX B660-I GAMING WIFI |
HDMI connector |
YES |
Motherboards:Processor and Chipset:Pro Supported |
12th Gen Intel Core, Pentium Gold, Celeron |
For gamers |
YES |
Rear Panel Connectors:Rear Panel:Number of Type Connectors |
6 |
Number of external USB 3.2 (Type-C) |
one |
Length cm |
23 |
Supported processors |
check compatibility on the manufacturer’s website |
Motherboards:Additional information:Form factor motherboards |
Mini-ITX |
Basic characteristics:Slots for installing the processor, pcs |
one |
part number |
ROG STRIX B660-I GAMING WIFI |
Maximum number of memory slots (for Citylink filter) |
2 |
ProductNameImported |
ASUS ROG STRIX B660-I GAMING WIFI LGA1700 mini-ITX 2xDDR5 PCIEx16 2xM.2 HDMI DP 2.5GLAN WIFI RTL {6} (514961) |
Motherboards:Processor & Chipset:Expansion Slots |
PCIe 5.0 x16 |

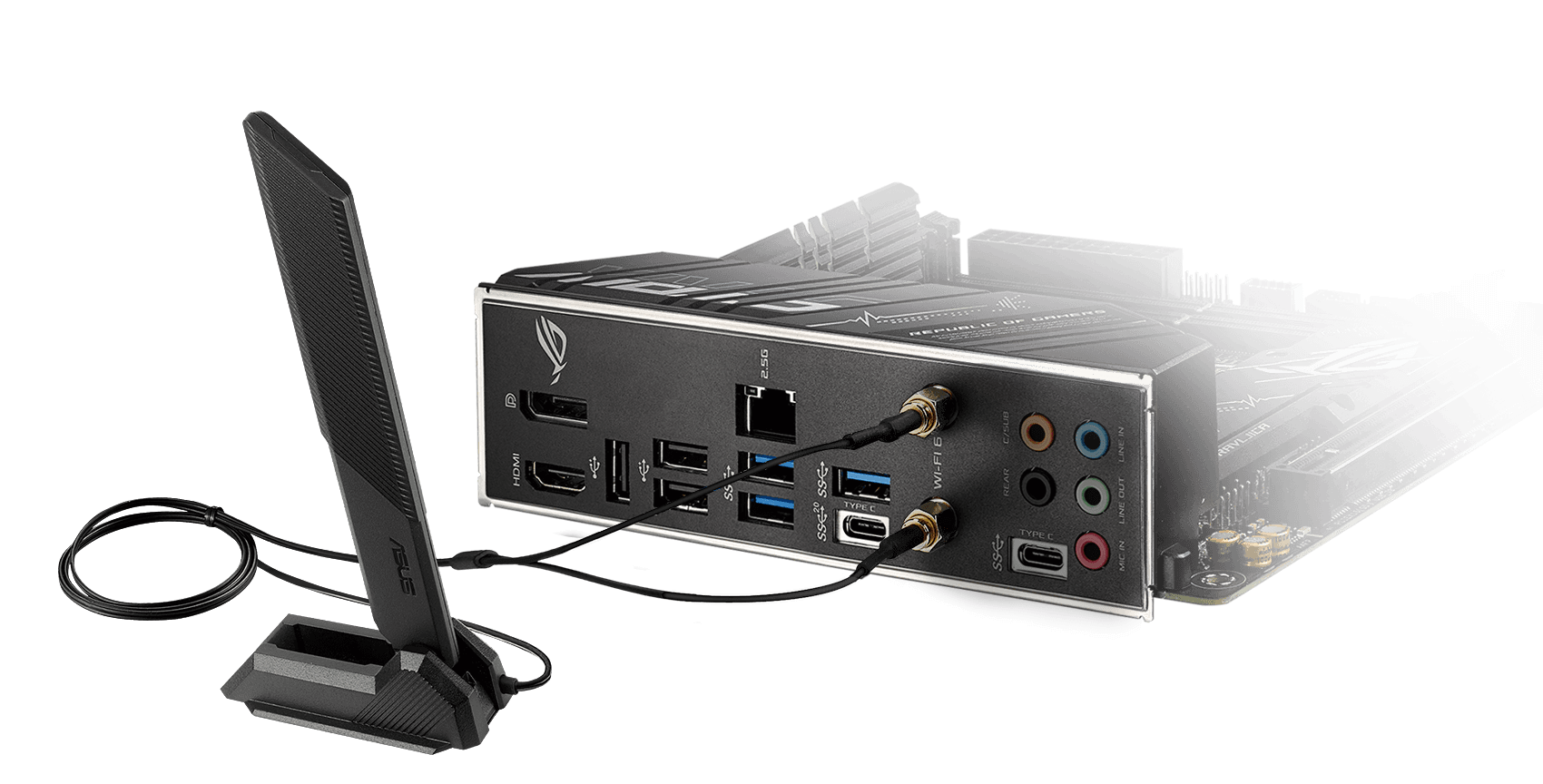

Rear panel connectors:Rear panel:Wi-Fi antenna connector |
2 |
Brand |
ASUS |
DDR5 memory slots |
2 |
Height, cm |
19 |
Model |
ROG STRIX B660-I GAMING WIFI |
Motherboards:Memory:Maximum RAM |
64 |
Motherboards:Processor & Chipset:Network card |
Intel I225-V 2.5Gb Ethernet |
Display port connector |
YES |
Internal Connectors: SATA / SAS: SATA RAID support |
0, 1, 5, 10 |
Supported drives and drives |
check compatibility on the manufacturer’s website |
ProductNameImported |
Motherboard Asus ROG STRIX B660-I GAMING WIFI Soc-1700 Intel B660 2xDDR5 mini-ITX AC`97 8ch(7.1) 2.5Gg RAID+HDMI+DP |
Ability to install two video cards with a three-slot system |
YES |
brand |
ASUS |
Min_Packaged |
0 |
Model |
ROG STRIX B660-I GAMING WIFI |
HDMI connectors |
one |
WiFi as standard |
YES |
Delivery type |
Ret |
Audio controller |
SupremeFX S1220A |
Sound |
8 channels (7.1) |
Number of external USB 2.0 |
3 |
Number of external USB 3.0 |
4 |
Maximum RAM |
64 GB |
Motherboard and processor power |
24+8pin |
Support for RAM frequencies |
6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz |
Size (motherboards) |
iB660 |
SATA3 connectors |
4 |
RAM mode |
two-channel |
network interface |
2.5Gigabit |
Supported memory type |
DIMM |
Memory frequency specification |
4800 MHz |
Bluetooth as standard |
YES |
Northbridge |
Intel B660 |
Processor socket |
LGA 1700 |
RAID support |
YES |
RAID 0 support |
YES |
RAID 1 support |
YES |
RAID 10 support |
YES |
RAID 5 support |
YES |
Display ports |
one |
M.2 connectors |
2 |
Network Controller |
Intel |
SATA RAID support |
YES |
VAT |
20.0000 |
Volume, m3 |
0.00534 |
Weight, kg |
1.280 |
Short name |
ASUS ROG STRIX B660-I GAMING WIFI, LGA1700, B660, 2*DDR5, HDMI+DP, SATA3 + RAID , Audio, Gb LAN, USB 3.2*9, USB 2.0*3, COM*1 header (w/o cable) , mITX ; 90MB19C0-M0EAY0 |
Motherboards: Additional Information: Power |
24 and 8 pin |
Motherboards:Memory:RAM Slots |
2 |
Motherboards:Memory:Memory type |
DDR5 |
Motherboards:Processor & Chipset:Audio System |
7.1CH, HDA, based on S1220A |
Motherboards:Processor & Chipset:Socket |
LGA1700 |
Motherboards:CPU & Chipset:Chipset |
Intel B660 |
Motherboards:Connectors:USB |
8 |
Motherboards: Storage: RAID |
0/1/5/10 |
Motherboards:Storage:SATA |
4 |
Motherboards:Connectors:Wi-Fi |
Yes |
Motherboards: Additional information: M.2 |
Yes |
Motherboards:Memory:Supported Memory Types |
DIMM, Non-ECC, Un-buffered |
Audio: Audio Chipset |
Realtek ALC S1220A |
Audio: Number of audio channels |
7.1 |
Base Features: Chipset Manufacturer |
Intel |
Base Features: CPU Socket |
LGA1700 |
Basic characteristics: System bus frequency, MHz |
one hundred |
Base Features: Chipset |
Intel B660 |
Internal connectors:Internal connectors:USB 2.0 int. |
2 |
Internal Connectors:Internal Connectors:S/PDIF Out |
one |
Graphics subsystem: Graphics chipset |
Depends on the processor used |
RAM: Number of memory slots, pcs |
2 |
RAM:Maximum memory, GB |
64 |
RAM:Minimum memory frequency, MHz |
4800 |
RAM:Memory mode |
2 channel |
RAM: Type of RAM |
DDR5 |
RAM:Memory form factor |
DIMM |
Power:Main power connector |
24pin |
Power: CPU power connector |
8pin |
Power: 4 pin fan connectors |
3 |
Other Features:BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
Other characteristics: Type of delivery |
RTL |
Other characteristics:Dimensions:Depth, mm |
170 |
Other characteristics:Dimensions:Width, mm |
170 |

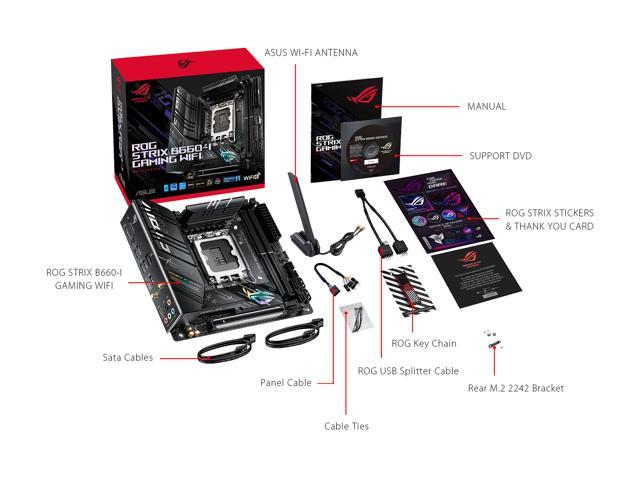

Other Features: Package Contents |
Board, software CD, cable kit, fixing kit, I/O panel blank, antenna |
Rear panel connectors:Audio connectors:Line in |
one |
Rear Panel Connectors:Audio Connectors:Line Out |
one |
Rear panel connectors:Audio connectors:Microphone input |
one |
Rear connectors: Rear panel: USB 2.0 |
3 |
Connectors on the rear panel: Network: RJ45 |
one |
Expansion slots: PCI-Ex16 |
one |
Expansion slots: PCI Express version |
5.0 |
RAM: Support ECC |
Not |
Rear Panel Connectors: Network: Network Controller |
Intel i225V |
Basic Features: Product Series |
Strix |
Internal connectors:M.2:Number of M.2 sockets |
2 |
Internal Connectors:M.2:Max. valid M.2 form factor |
2280 |
Internal connectors:M.2:Key type |
M |
Internal connectors: M.2: M.2 socket type |
PCI-E x4 |
Internal Connectors:SATA / SAS:SATA 6Gb/s |
4 |
Rear panel connectors:Audio connectors:7.1 out |
one |
Rear connectors:Video outputs:HDMI |
one |
Rear connectors: Video outputs: DisplayPort |
one |
Wireless interfaces:Bluetooth |
5.2 |
Wireless interfaces:Wi-Fi:IEEE 802.11a |
Yes |
Wireless interfaces:Wi-Fi:IEEE 802.11ac |
Yes |
Wireless interfaces:Wi-Fi:IEEE 802.11b |
Yes |
Wireless interfaces:Wi-Fi:IEEE 802.11g |
Yes |
Wireless interfaces:Wi-Fi:IEEE 802.11n |
Yes |
RAM: Support Intel Optane Memory |
Yes |
Expansion slots: Attention |
Specifications of PCI-E slots (number of lanes) should be specified on the manufacturer’s website |
Support for Intel Optane |
YES |
EANUPC:1 |
4711081514961 |
EANUPC:2 |
4711081514961 |
Other specs: Form factor |
Mini-ITX |
Form factor |
mini-ITX |
Wireless interfaces:Wi-Fi:IEEE 802.11ax |
Yes |
Internal connectors:Internal connectors:USB 3.2 Gen1 int. |
2 |
Internal connectors:Internal connectors:USB 3.2 Gen2 int. |
one |
Back panel connectors: Back panel: USB 3.2 Gen1 |
4 |
Back panel connectors: Back panel: USB 3.2 Gen2 |
one |
Base Features:Positioning use |
Desktop |
Height, m |
0.315 |
Length, m |
0.47 |
Volume, m3 |
0.005305125 |
Weight, kg |
1.2833333333333 |
Width, m |
0.215 |
Logistics |
Package dimensions (measured in NYX) |
21.5 x 31.5 x 47 cm |
Gross weight (measured in NYX) |
1.28333333 kg |
