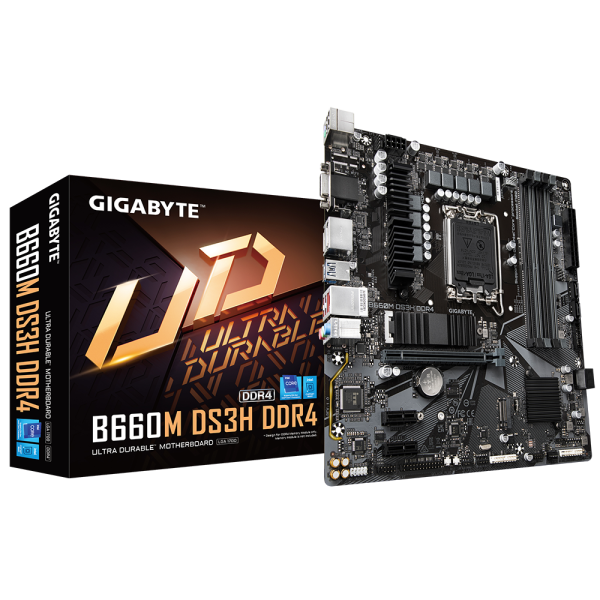

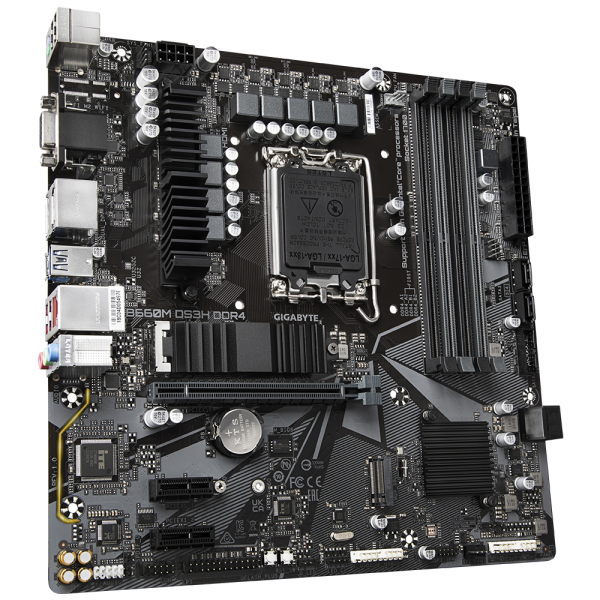

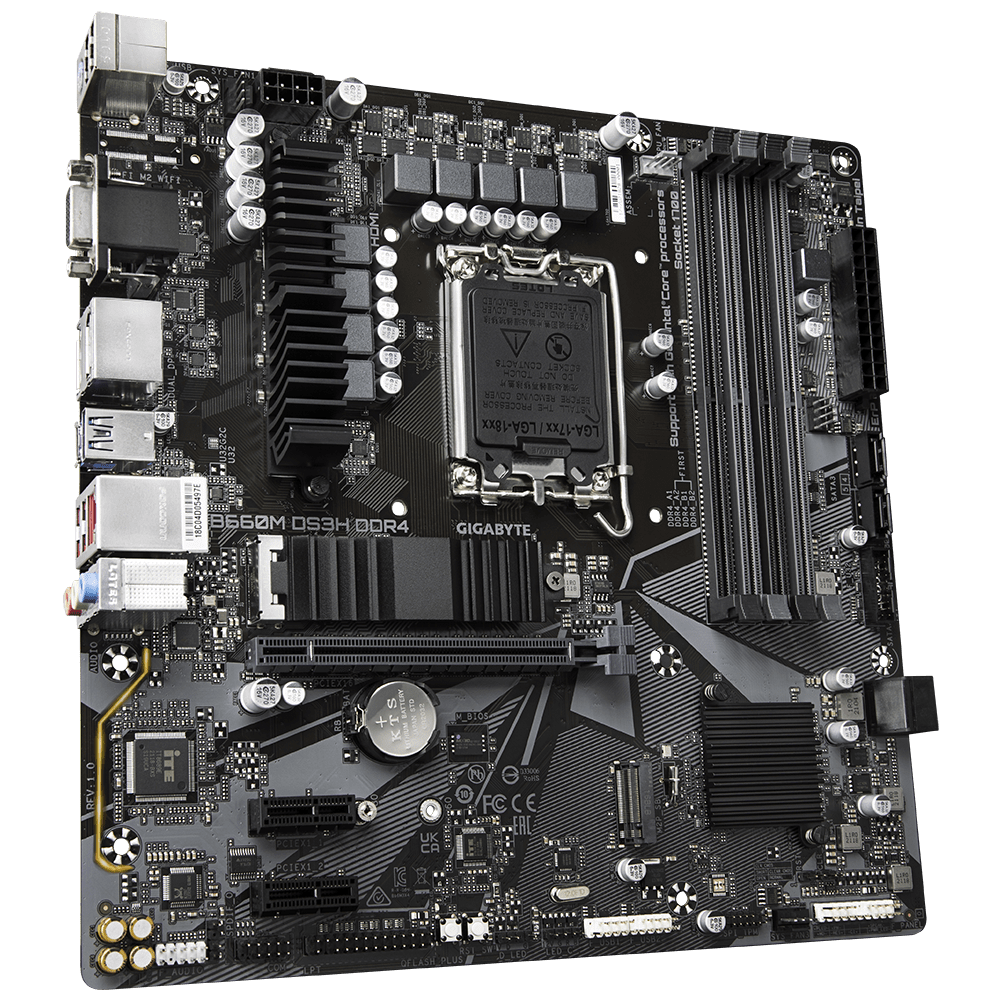

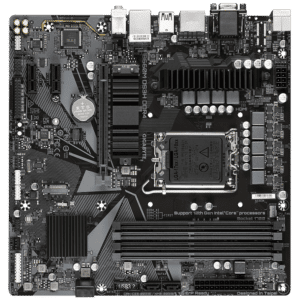

Gigabyte B660M DS3H DDR4

מק"ט B660M-DS3H-DDR4 קטגוריה תגיות , , , , ,

549

תיאור מוצר
SPECIFICATIONS
Brand Gigabyte
Series DS3H
Model GA-B660M-DS3H-DDR4
CPU LGA 1700 Socket: Support For 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 Cache Varies With CPU
Please Refer To CPU Support List For More Information
Chipset Intel B660 Express Chipset
Memory Support For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz Memory Modules
4x DDR4 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For Extreme Memory Profile (XMP) Memory Modules
Please Refer To Memory Support List For More Information
Onboard Graphics 1x D-Sub Port, Supporting A Maximum Resolution Of 1920×1200@60 Hz
1x DisplayPort, Supporting a Maximum Resolution Of 4096×2304@60 Hz
Support For DisplayPort 1.2 Version And HDCP 2.3
1x HDMI Port, Supporting a Maximum Resolution Of 4096×2160@60 Hz
Support For HDMI 2.1 Version And HDCP 2.3.
Support Native HDMI 2.1 TMDS Compatible Ports
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-Channel
LAN Intel 2.5GbE LAN Chip(2.5 Gbps/1 Gbps/100Mbps)
Expansion Slots 1x PCI Express x16 Slot, Running At x16 (PCIEX16)
(The PCIEX16 Slot Conforms To PCI Express 4.0 Standard)
1x PCI Express x1 slot
Storage Interface
CPU Native 1x M.2 Connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD Support) (M2A_CPU)
Intel B660 Chipset 1x M.2 Connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD Support) (M2P_SB)
4x SATA 6Gb/s Connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
System Acceleration With Intel Optane Memory Can Only Be Enabled On The M.2 Connectors Supported By The Chipset
USB
Chipset 1x USB Type-C Port On The Back Panel, With USB 3.2 Gen 2 Support
5x USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
2x USB 2.0/1.1 Ports On The Back Panel
Chipset USB 2.0 Hub 4x USB 2.0/1.1 Ports Available Through The Internal USB Headers
Internal I/O Connectors 1x 24-Pin ATX Main Power Connector
1x 8-Pin ATX 12V Power Connector
1x CPU Fan Header
3x System Fan Headers
1x Addressable LED Strip Headers
1x RGB LED Strip Headers
2x M.2 Socket 3 Connectors
4x SATA 6Gb/s Connectors
1x Front Panel Header
1x Front Panel Audio Header
1x USB 3.2 Gen 1 Header
2x USB 2.0/1.1 Headers
1x Serial Port Header
1x Trusted Platform Module Header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)
1x Reset Button
1 x Parallel Port Header
1x Q-Flash Plus Button
1x Reset Jumper
1x Clear CMOS Jumper
Back Panel Connectors 1x PS/2 Keyboard/Mouse Port
1x USB Type-C Port, With USB 3.2 Gen 2 Support
3x USB 3.2 Gen 1 Ports
2x USB 2.0/1.1 Ports
1x D-Sub Port
1x HDMI Port
2x DisplayPorts
1x RJ-45 Port
3x Audio Jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage Detection
Temperature Detection
Fan Speed Detection
Fan Fail Warning
Fan Speed Control
Whether The Fan (Pump) Speed Control Function Is Supported Will Depend On The Fan (Pump) You Install
BIOS 1x 256 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
Available Applications In APP Center May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications.
BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM Version)
cFosSpeed
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor ATX Form Factor
244 x 244mm (L x W)
Warranty Information
Warranty Manufacturer’s Warranty
