SPECIFICATIONS |
Brand |
ASUS |
Series |
Radeon RX 6000 Series |
Model |

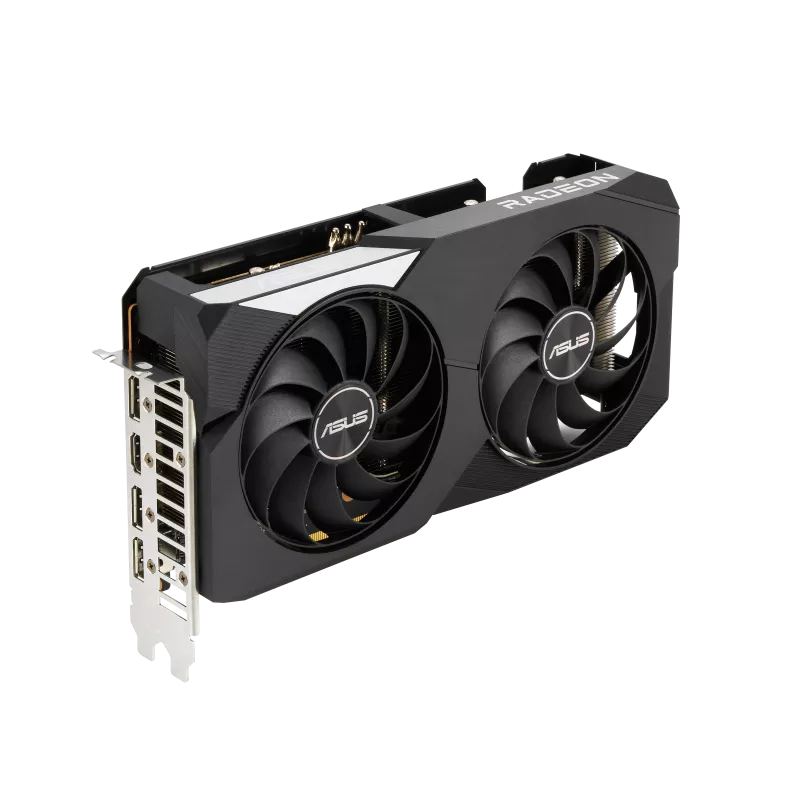

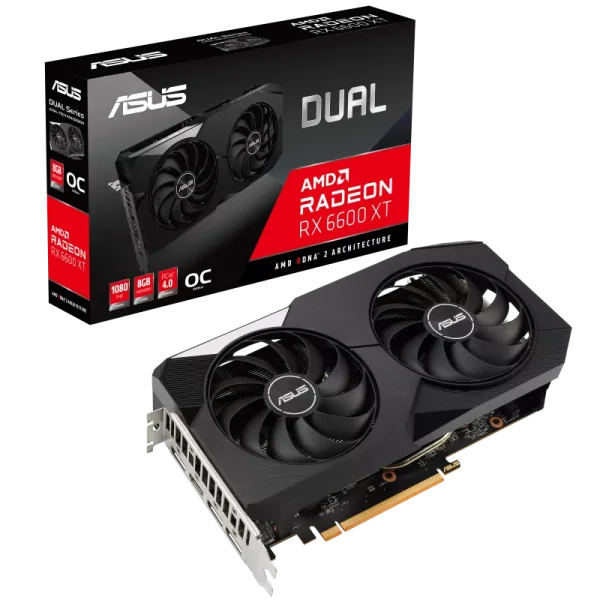

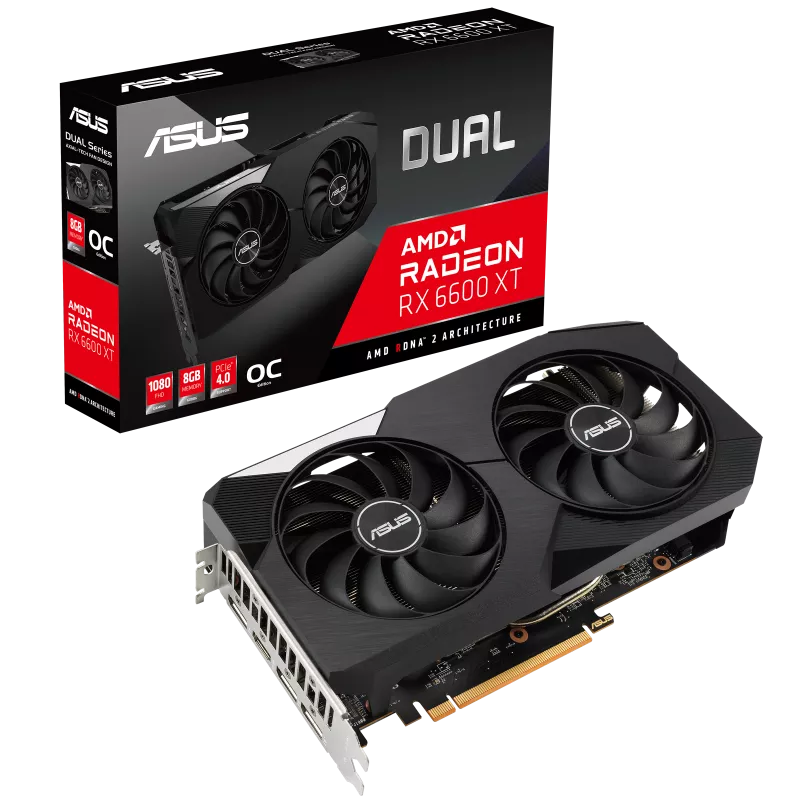

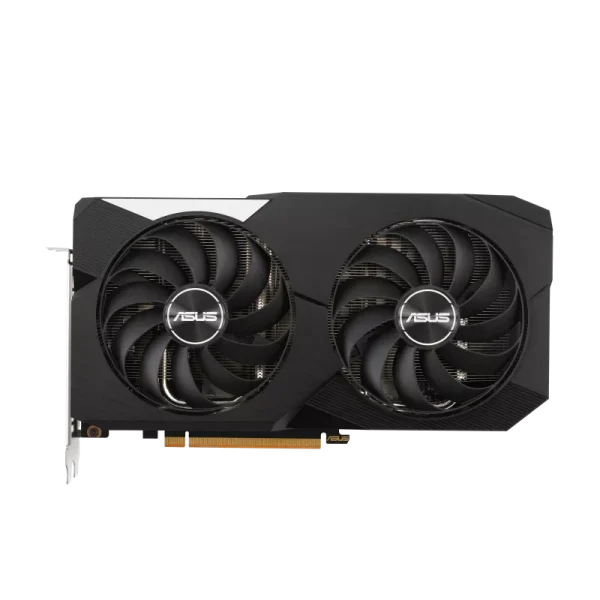

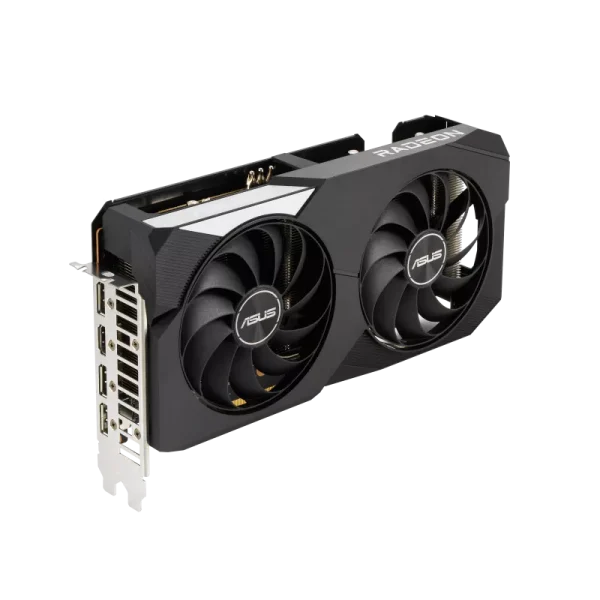

RX 6600 XT Dual OC Edition (DUAL-RX6600XT-O8G) |
Chipset |
GPU |
Radeon |
Chipset Manufacturer |
AMD |
Interface |
PCI-E 4.0 |
Compute Units |
32 |
Ray Accelerators |
32 |
ROPs |
64 |
Base Clock |
1968 MHz |
OC Mode |
Up to 2607 MHz (Boost Clock) |
Up to 2402 MHz (Game Clock) |
Gaming Mode |
Up to 2593 MHz (Boost Clock) |
Up to 2382 MHz (Game Clock) |
Stream Processors |
2048 |
Texture Units |
128 |
GPU Architecture |
AMD RDNA 2 Architecture |
Memory |
Infinity Cache |
32 MB |
Effective Memory Clock |
16 Gbps |
Memory Size |
8GB |
Memory Interface |
128-bit |
Memory Type |
GDDR6 |
Memory Bandwidth |
Up to 256 GB/s |
3D API |
DirectX |
12 Ultimate |
OpenGL |
4.6 |
Connectivity |
Ports |

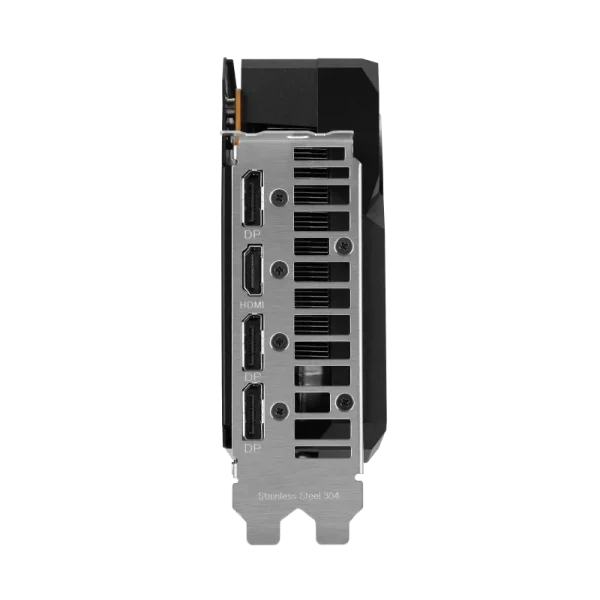

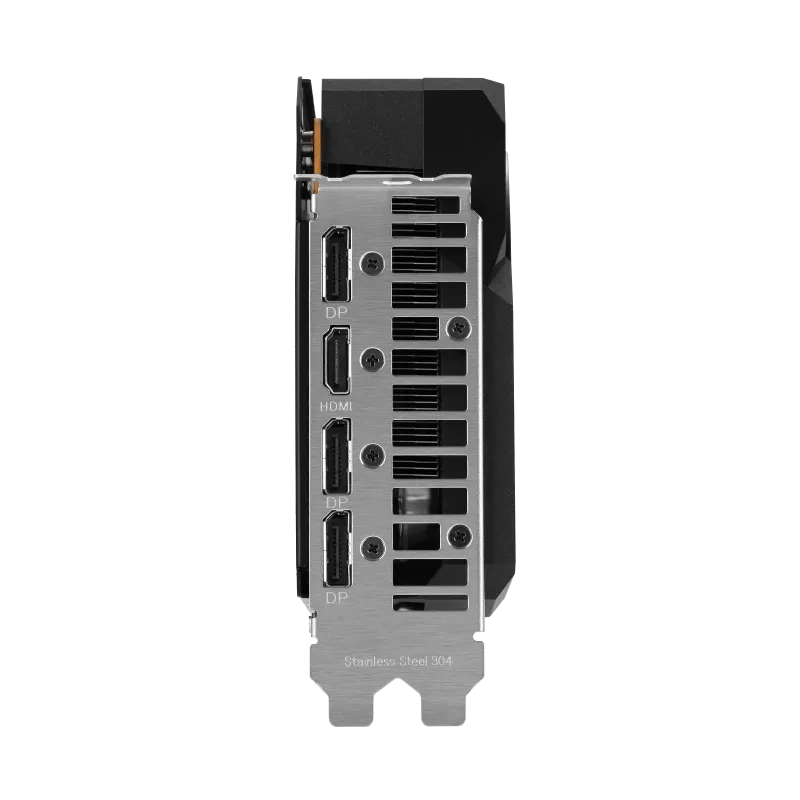

3x DisplayPort 1.4a (with DSC) |
1x HDMI 2.1 (2.1 VRR and FRL) |
Multi-Monitor Support |
4 |
Maximum Digital Resolution |
7680 x 4320 |
HDMI 4K Support |
Yes |
NVlink/ Crossfire Support |
Yes |
VR Ready |
Yes, Radeon VR Ready Premium |
General |
Features |
7nm GPU |

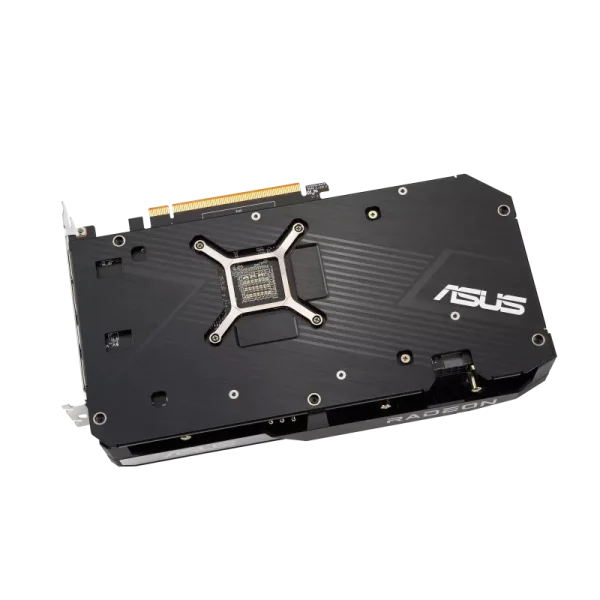

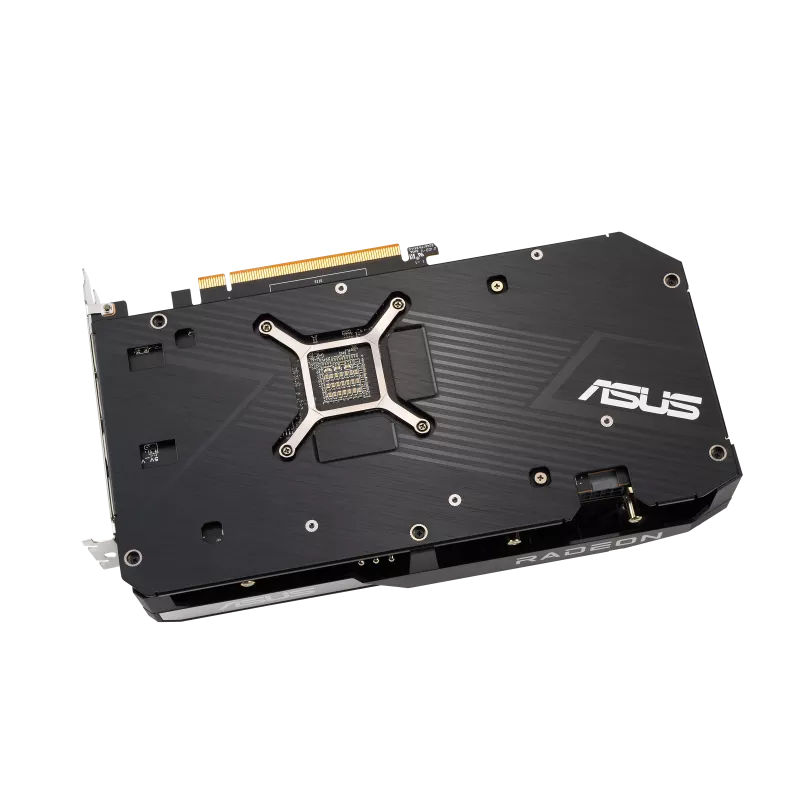

Protective Backplate |
GPU Bracket |
Stainless Steel Bracket |

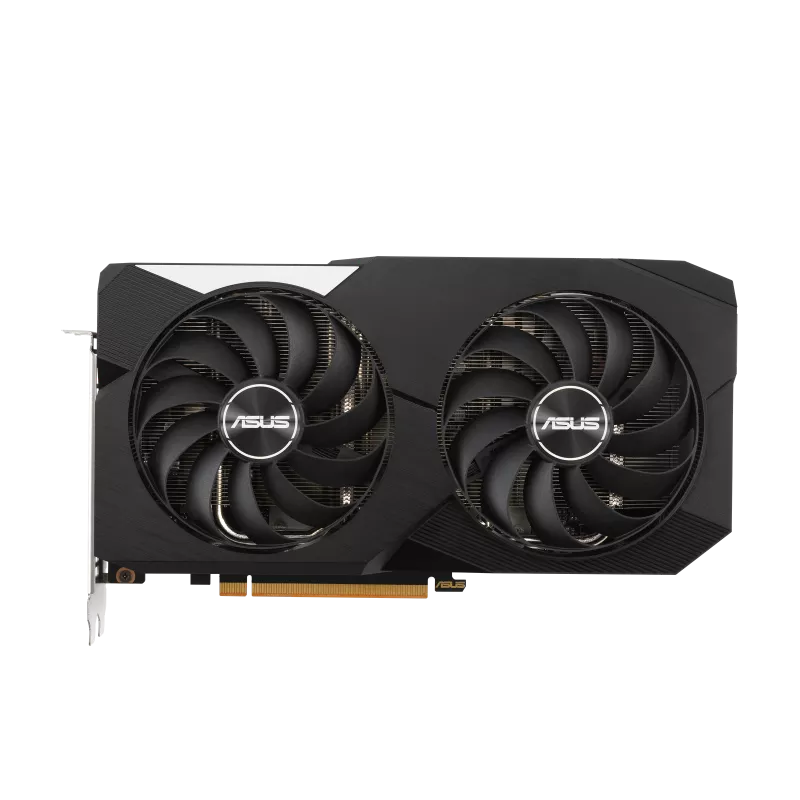

Axial-Tech Fan Design |
Dual Ball Fan Bearings |
0dB Technology |
Auto-Extreme Technology |
ASUS GPU Tweak II |
PCI Express 4.0 Support |
DisplayPort 1.4 with DSC |
HDMI 2.1 VRR |
HDMI 4K Support |
4K H264 Decode |
4K H264 Encode |
H265/HEVC Decode |
H265/HEVC Encode |
AV1 Decode |
Video Streaming up to 8K |
AMD FreeSync Technology |
AMD Radeon VR Ready Premium |
AMD Smart Access Memory Technology |
AMD FidelityFX |
AMD Radeon Software |
Power Requirements |
Minimum Recommended Power Supply |
500W |
Power Connector |
1x 8-Pin |
Physical Aspects |
Form Factor |
ATX |
Slot Width |
2.5 Slots |
Dimensions |
243 x 134 x 49 mm (LxWxH) |
Warranty Information |
Warranty |
3 Year Warranty |
