SPECIFICATIONS |
Brand |
ASUS |
Series |
PHOENIX |
Model |

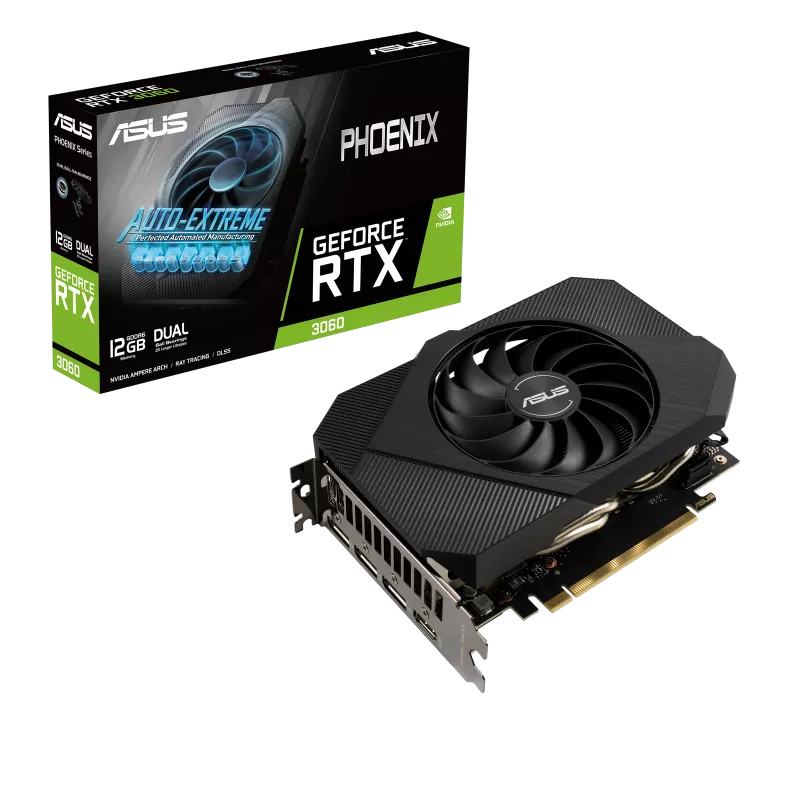

RTX 3060 Phoenix (PH-RTX3060-12G-V2) |
Chipset |
GPU |
GeForce RTX 3060 |
Chipset Manufacturer |
NVIDIA |
Interface |
PCI-E 4.0 |
Base Clock |
1320 MHz |
Boost Clock |
1777 MHz |
CUDA Cores |
3584 |
GPU Architecture |
NVIDIA Ampere Architecture |
Memory |
Effective Memory Clock |
15 Gbps |
Memory Size |
12GB |
Memory Interface |
192-bit |
Memory Type |
GDDR6 |
Memory Bandwidth |
360 GB/s |
3D API |
DirectX |
Microsoft DirectX 12 Ultimate |
OpenGL |
4.6 |
Vulkan |
1.2 |
Connectivity |
Ports |
3x DisplayPort 1.4a |
1x HDMI 2.1 |
HDCP Support |
v2.3 |
Multi-Monitor Support |
4 |
Maximum Digital Resolution |
7680 x 4320 @60Hz |
VR Ready |
Yes |
General |
SLI Support |
No |
Cooling |
ASUS Axial Fan Technology |
Features |
All-Metal Backplate |
Dual ball fan bearings can last up to twice as long as sleeve bearing designs |
Auto-Extreme Technology uses automation to enhance reliability |
2nd Gen Ray Tracing Cores |
3rd Gen Tensor Cores |
PCI Express Gen 4 |
Real-Time Ray Tracing Technology |
NVIDIA DLSS |
NVIDIA GeForce Experience |
NVIDIA Ansel |
NVIDIA FreeStyle |
NVIDIA ShadowPlay |
NVIDIA Highlights |
NVIDIA G-SYNC |
Game Ready Drivers |
NVIDIA Studio Drivers |
NVIDIA GPU Boost |
NVIDIA Encoder, 7th Generation |
NVIDIA Decoder, 5th Generation |
Power Requirements |
Minimum Recommended Power Supply |
650W |
Power Consumption |
170W |
Power Connector |
1x 8-Pin |
Physical Aspects |
Form Factor |
ATX |
Slot Width |
2.55 Slots |
Dimensions |
177 x 128 mm (LxW) |
Warranty Information |
Warranty |
3 Year Warranty |
