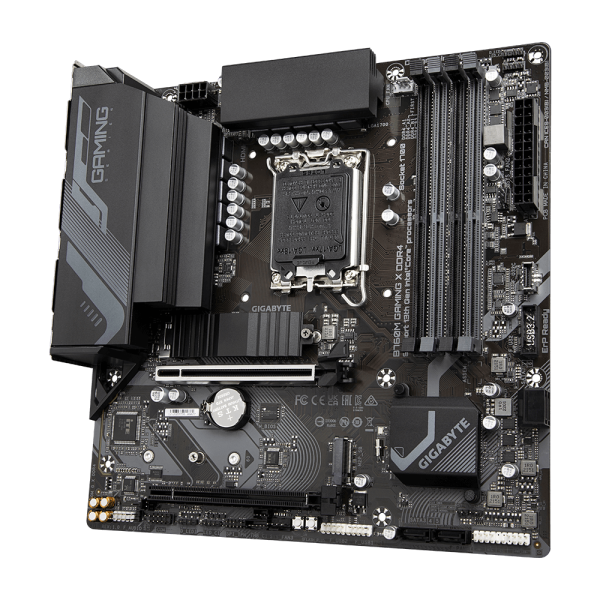

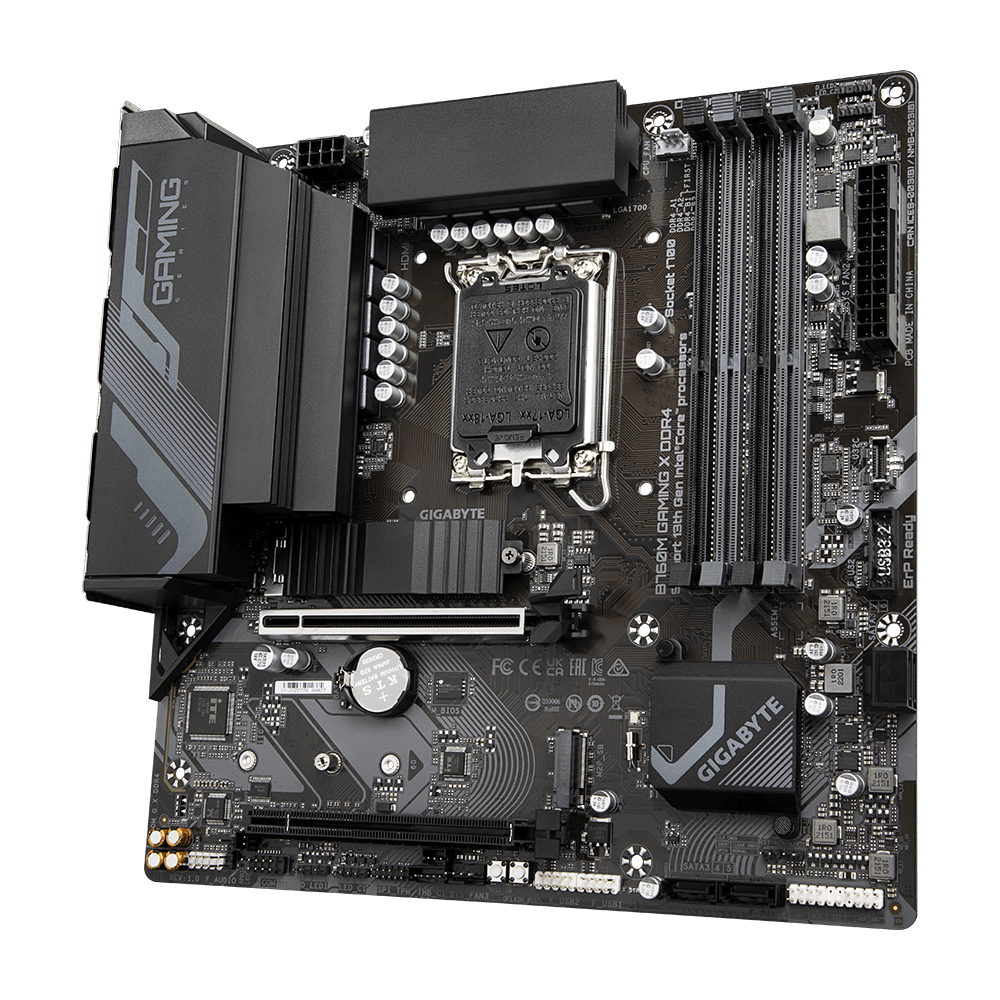

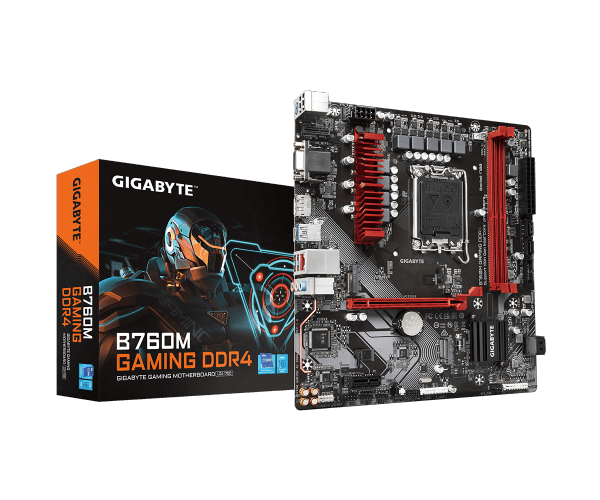

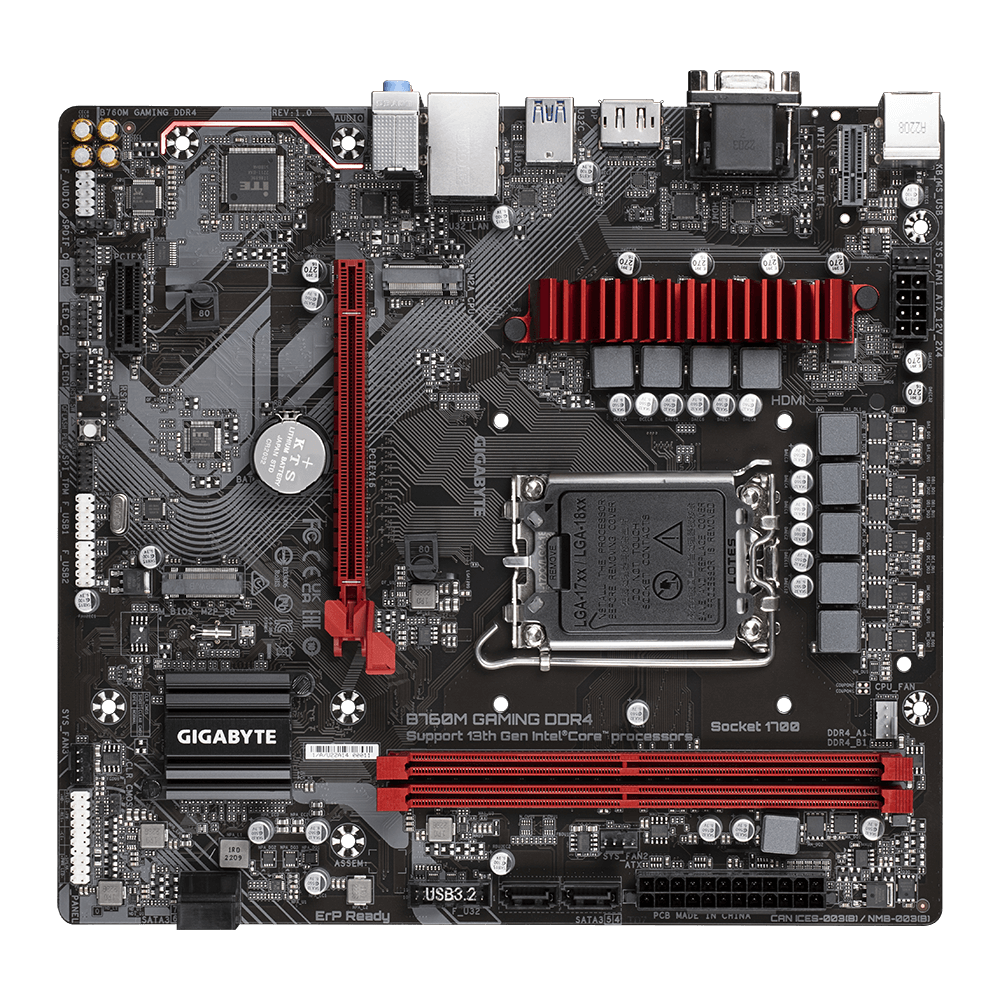

Gigabyte B760M GAMING DDR4

מק"ט B760M-GAMING-DDR4 קטגוריות , תגיות , , , , ,


תיאור מוצר
Brand Gigabyte
Series Gaming X Series
CPU Support LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset Intel B760 Express
Memory Support
Intel 12th & 13th Gen Series Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
4x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
DisplayPort 1x DisplayPort, supporting a maximum resolution of 4096×2304 @ 60 Hz, Support for DisplayPort 1.2 and HDCP 2.3
HDMI 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 60 Hz, Support for HDMI 2.0 and HDCP 2.3
Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct 1x PCIe 4.0 x16 Physical, x16 Electrical Slot
Intel B760 Chipset 1x PCIe 3.0 x16 Physical, x4 Electrical Slot
CPU Direct 1x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support)
Intel B760 Chipset 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
4x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
LAN Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
WiFi N/A
Bluetooth N/A
Codec Realtek High-Definition Audio Codec
Support for S/PDIF Out
2/4/5.1/7.1-channel Surround Support with Front-Panel Jack retasking
Ports 3x USB 3.2 Gen 1 ports
5x USB 2.0/1.1 ports
1x HDMI 2.0 port
1x DisplayPort
1x RJ-45 port
3x audio jacks
Buttons 1x Q-Flash Plus button
Internal Connectors 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
3x system fan headers
2x addressable LED strip headers
2x RGB LED strip headers
2x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x front panel header
1x front panel audio header
1x S/PDIF Out header
1x USB Type-C header, with USB 3.2 Gen 2 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
2x Thunderbolt add-in card connectors
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1x serial port header
1x reset button
1x Q-Flash Plus button
1x reset jumper
1x Clear CMOS jumper
I/O Controller iTE I/O Controller Chip
LED Displays N/A
BIOS 1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro-ATX Form Factor, 240 x 240mm (H x W)
Operating System Support Windows 10 64-bit
Windows 11 64-bit
Warranty Information
Warranty 3 Year Warranty
