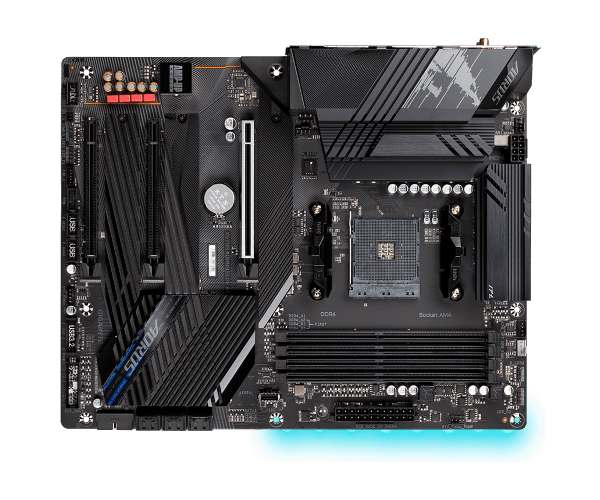

Gigabyte X570s AORUS ELITE 1.1 AMD ZEN3 WIFI6

מק"ט X570S-AORUS-ELITE-AX-1.1 קטגוריות , תגיות , , , , , ,

1,319

תיאור מוצר
SPECIFICATIONS
Brand Gigabyte
Series Aorus
Model GA-X570S-AORUS-ELITE (rev. 1.0)
CPU AMD Socket AM4, Support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 Series/ AMD Ryzen 3000 G-Series/ AMD Ryzen 2000 Series/ AMD Ryzen 2000 G-Series Processors
Chipset AMD X570
Memory AMD Ryzen 5000 Series processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules
AMD Ryzen 4000 G-Series Processors:
Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules
AMD Ryzen 3000 Series Processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors:
Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz Memory Modules
4x DDR4 DIMM Sockets Supporting Up to 128 GB (32 GB Single DIMM Capacity) of System Memory
Dual Channel Memory Architecture
Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules
Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support for Extreme Memory Profile (XMP) Memory Modules
On-Board Graphics Integrated Graphics Processor:
1x HDMI Port, Supporting a Maximum Resolution of 4096×2160@60 Hz *1
Maximum Shared Memory of 16 GB
(Note) For AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors Only.
Audio Realtek ALC1220-VB Codec *2
High Definition Audio
2/4/5.1/7.1-Channel
Support for S/PDIF Out
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1x PCI Express x16 Slot (PCIEX16), Integrated in the CPU: *3
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors Support PCIe 4.0 x16 Mode
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors Support PCIe 3.0 x16 Mode
AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors Support PCIe 3.0 x8 Mode
1x PCI Express x16 Slot (PCIEX4), Integrated in the Chipset:
Supporting PCIe 4.0(Note)/3.0 x4 Mode
1x PCI Express x16 Slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 4.0(Note)/3.0 x2 Mode *4
(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors Only.
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire Technologies
(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors Only.
Storage Interface 1x M.2 Connector (M2A_CPU), Integrated in the CPU, Supporting Socket 3, M Key, Type 2260/2280/22110 SSDs:
AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors Support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors Support SATA and PCIe 3.0 x4/x2 SSDs
2x M.2 Connectors (M2B_SB/M2C_SB), Integrated in the Chipset, Supporting Socket 3, M Key, Type 2260/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
6x SATA 6Gb/s Connectors, Integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
(Note) For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors Only.
USB CPU:
4x USB 3.2 Gen 1 Ports on the Back Panel
Chipset+ASMedia USB 3.2 Gen 2×2 Controller:
1x USB Type-C Port on the Back Panel, with USB 3.2 Gen 2×2 Support
Chipset:
1x USB Type-C Port with USB 3.2 Gen 2 Support, Available Through the Internal USB Header
3x USB 3.2 Gen 2 Type-A Ports (Red) on the Back Panel
4x USB 3.2 Gen 1 Ports Available Through the Internal USB Headers
Chipset+2 USB 2.0 Hubs:
8x USB 2.0/1.1 Ports (4 Ports on the Back Panel, 4 Ports Available Through the Internal USB Headers)
Internal I/O Connectors 1x 24-pin ATX Main Power Connector
1x 8-pin ATX 12V Power Connector
1x CPU Fan Header *5
1x Water Cooling CPU Fan Header *5
3x System Fan Headers
1x System Fan/Water Cooling Pump Header
2x Addressable LED Strip Headers
2x RGB LED Strip Headers
1x CPU Cooler LED Strip/RGB LED Strip Header
3x M.2 Socket 3 Connectors
6x SATA 6Gb/s Connectors
1x Front Panel Header
1x Front Panel Audio Header
1x USB Type-C Header, with USB 3.2 Gen 2 Support
2x USB 3.2 Gen 1 Headers
2x USB 2.0/1.1 Headers
1x Trusted Platform Module (TPM) Header (2×6 pin, for the GC-TPM2.0_S Module Only)
1x Thunderbolt Add-In Card Connector
1x Clear CMOS Jumper

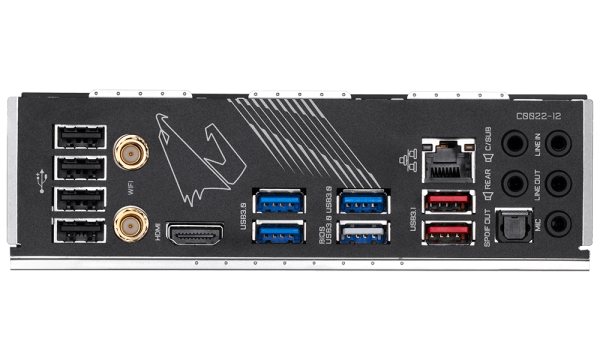

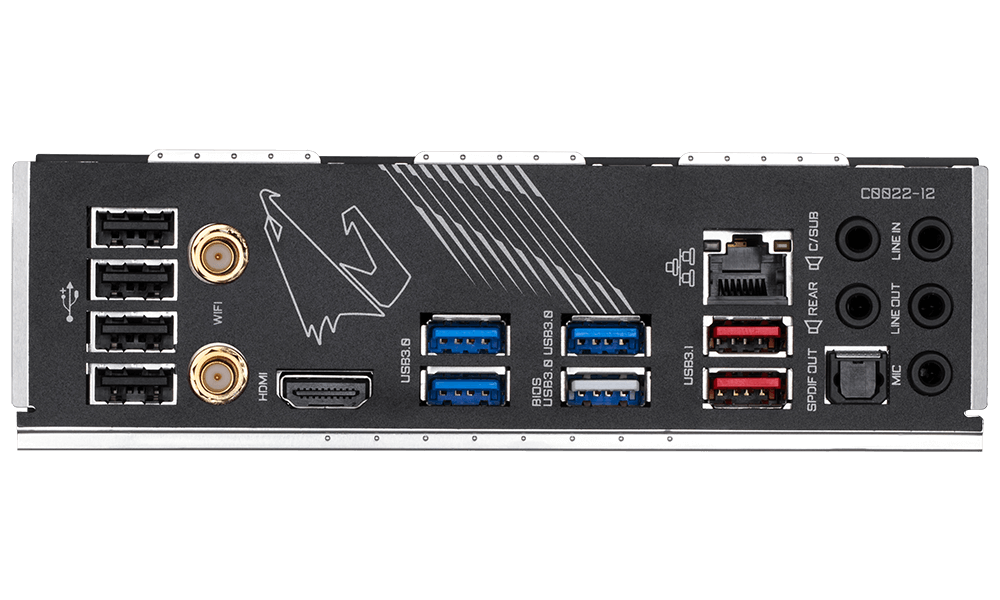

Back Panel Connectors 4x USB 2.0/1.1 Ports
1x HDMI Port
4x USB 3.2 Gen 1 Ports
1x Q-Flash Plus Button
1x USB Type-C Port, with USB 3.2 Gen 2×2 Support
3x USB 3.2 Gen 2 Type-A Ports (Red)
1x RJ-45 Port
1x Optical S/PDIF Out Connector
5x Audio Jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage Detection
Temperature Detection
Fan Speed Detection
Water Cooling Flow Rate Detection
Fan Fail Warning
Fan Speed Control *6
BIOS 1x 256 Mbit Flash
Use of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System Support Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Notes *1 Support for HDMI 2.1 version, HDCP 2.3, and HDR.
*2 The back panel line out jack supports DSD audio.
*3 For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
*4 The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode.
*5 All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
*6 Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Warranty Information
Warranty 3 Year Warranty
