AudioBox USB® 96 Studio (25th Anniversary Black) PreSonus

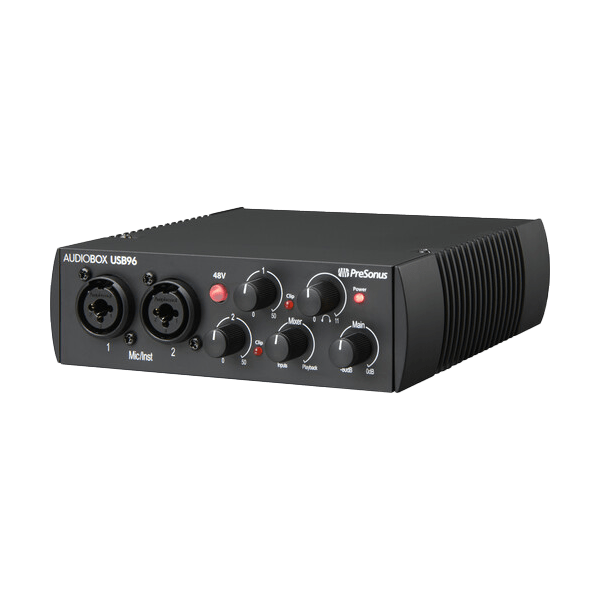

AudioBox USB^® 96

• Bus-powered USB audio and MIDI interface
• Perfect match with Studio One^® Artist software for Mac^® and Windows^®
• 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
• 2 combo mic/instrument inputs with Class A mic preamplifiers
• 48V phantom power (for included M7 microphone or other condenser microphones)
• Zero-latency monitoring via internal analog mixer
• Headphone jack with level control (for included HD7 headphones or other headphones)
• 1/3U rack-mountable
• Computer-to-interface connection cable included

Studio One Artist software

• • • Elegant single-window work environment
    • Powerful drag-and-drop functionality
    • Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
    • Content browser with convenient sort options and preview player
    • Most intuitive MIDI-mapping system available
    • Real-time audio time-stretching and resampling
    • Multitrack comping and MIDI editing
    • Transient detection and editing and groove extraction
    • Automatic delay compensation
    • Advanced automation
    • Integrates tightly with Celemony Melodyne
    • Instantly configures to PreSonus^® interfaces​<li</li

  <li

• Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
• 26 Native Effects 32-bit effects and virtual instrument plug-ins
• 10+ GB of third-party software, loops, and instruments
• Mac- and Windows-compatible

</li

Other Software

• Studio Magic Suite included (Over $1000 USD of software!)
• Ableton^® Live Lite included

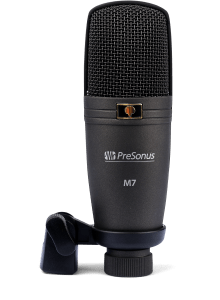

M7 Microphone

• Large-diaphragm design
• Captures far more detail than a dynamic mic
• Mic stand adaptor
• Phantom-powered via AudioBox USB
• 9' / 3 m cable included
• Cloth carry bag included

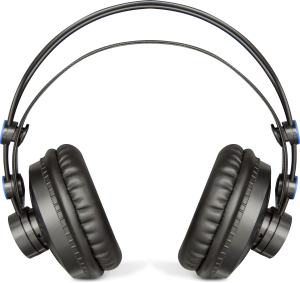

HD7 Headphones

• High neodymium resolution drivers
• Precision-tuned acoustic chamber
• Extended bass response
• Built tough to withstand abuse
• Auto-fit head pads
• Comfortable and long-lasting ear pads
• 98" / 2.5m single-side cable
• Optimized pressure
• Lightweight

• Technical Specifications

  AudioBox USB® 96 Specifications
  Microphone Preamp
  Type	XLR Female Balanced
  Frequency Response (±3.0 dB)	20 Hz to 20 kHz
  Input Impedance (Balanced)	1200Ω
  THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain)	< 0.008%
  S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)	> 95 dB
  Common Mode Rejection Ratio (1 kHz, 55 dB Gain)	> 45 dB
  Gain Control Range (± 1 dB)	0 dB to 35 dB
  Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N)	-3 dBu
  Phantom Power (±2 VDC)	+48 VDC

  Instrument Input
  Type	¼"
  TRS Female Unbalanced Input Impedance	0.5 MΩ

  Line Outputs
  Type	¼"
  Balanced Output Impedance	51Ω

  Headphone Output
  Type	¼" TRS Active Stereo
  Maximum Output	60 mW/Ch @ 60Ω Load
  Frequency Response (±1.0 dB)	20 Hz – 30 kHz

  MIDI I/O
  Type	Dual 5-pin Female DIN

  Digital Audio
  ADC Dynamic Range (A-wtd, 48 kHz Sample Rate)	105 dB
  DAC Dynamic Range (A-wtd, 48 kHz Sample Rate)	105 dB
  Bit Depth	24
  Reference Level for 0 dBFS	+4 dBu
  Supported Sample Rates (kHz)	44.1, 48, 88.2, 96
  Power	USB 2.0 Bus-powered

  Physical
  Dimensions	1/3U (steel chassis)
  Height	5.5” (139.7 mm)
  Depth	1.75" (44.45 mm)
  Width	5.5” (139.7 mm)
  Weight	1.4 lbs (0.64 kg)

  M7 Microphone Specifications
  General
  Type	Large-diaphragm condenser microphone
  Element	Electret
  Polar Pattern	Cardioid
  Frequency Response	40 Hz – 18 kHz
  Sensitivity	-39 dBV/pa (12.2 mV/pa)
  Rated Impedance	200Ω
  Equivalent Input Noise (EIN)	20 dB
  Maximum SPL	136 dB SPL
  Phantom Power Required	+12 to +52 VDC, 3 mA
  S/N Ratio	74 dB
  Dynamic Range	11 dB
  Current Consumption	3.5 mA

  Physical
  Diameter	2.13" (54 mm), maximum
  Length	6.69" (170 mm)
  Weight	11.3 oz. (320g)

  HD7 Headphone Specifications
  General
  Acoustic Design	Dynamic, semi-open
  Driver	50 mm, neodymium
  Frequency Response	10 Hz to 30 kHz
  Sensitivity	98 dB SPL (1 mW)
  Maximum Power	300 mW
  Rated Impedance	56Ω
  Earpad	Leather

  Physical
  Weight, without Cable	7.8 oz (222g)
  Cable	8' 2" (2.5m) straight, single-sided
  Plug Adapter	1/8" to 1/4" (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug
